Best selling Lighting accessories from Zumtobel
On this page you'll find a ranking of the best Zumtobel products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Zumtobel Control unit
The Zumtobel DIMLITE single control unit is a highly advanced DALI/DSI control device designed for installation. It allows for the simultaneous control of up to 25 DALI or DSI compatible lamp drivers and offers a dimming range of 1 to 100%. The output side is equipped with a polarity-reversible two-wire control line, enabling the use of standard installation materials. The device provides various connection options, including standard light single or double switches, as well as optional scene buttons and motion detectors. Connections are made via terminal blocks, simplifying installation. The housing is made of flame-retardant, halogen-free polycarbonate (PC) and is suitable for installation in luminaires or ceiling recesses. With an IP20 protection rating and a protection class II, the control unit is designed for indoor use and offers reliable performance.
- Input connection options for light switches and motion detectors
- Suitable for installation in luminaires or ceiling recesses
- Flame-retardant and halogen-free polycarbonate housing
- IP20 protection rating and protection class II for enhanced safety
- Compatible with up to 25 DALI or DSI lamp drivers.
2. Zumtobel DIN rail unit 22156610
Zumtobel Group trunking unit TECTON T #22156610
Manufacturer: Zumtobel Group
Designation: Trunking unit
Type: TECTON T #22156610
Material: Steel
Colour: White
Length: 11340 mm
Width: 60 mm
Height: 54 mm
Protection class: I
Protection rating (IP): IP20
The Zumtobel Group TECTON T trunking unit #22156610 is designed for any configuration of 35/49/80W or 28/54W continuous-row luminaires. The trunking unit includes AK chain suspension (ceiling fixing and chain provided by customer), TE electrical feeder with end caps and contact protection, trunking, and T-AK cover strips. The length is the entire length of the continuous line including feeder and end caps. Additional cover strips are required for an interrupted continuous line (fewer continuous line luminaires than maximum possible). The calculated suspension distance is 3m.
Dimensions: 11340 mm x 60 mm x 54 mm
Weight: 20.5 kg
EAN: 9005798116002.
3. Zumtobel Cover 22169546
The cover 22169546 from Zumtobel is a high-quality accessory for lighting systems. Made from durable plastic, it provides a reliable solution for protecting and covering light sources. With a length of 1900 mm and a width of 65 mm, this cover is versatile and suitable for various applications in lighting technology. Weighing only 0.37 kg, it is easy to handle and install. The cover features a neutral color scheme that blends harmoniously into different environments. It is an essential element for optimizing the functionality and aesthetics of lighting systems.
- Made from durable plastic for high resilience
- Versatile application possibilities in lighting technology
- Lightweight design for easy handling and installation.
4. Zumtobel Diffuser 22169472
Diffuser on the roll made of polycarbonate (PC) classified according to NORM TP(a) for Slotlight infinity Opal/Diffus with black shadow gap. Dimensions: 1750 x 38 x 1 mm. Weight: 0.37 kg.
5. Zumtobel Installation ring 60800868
The installation ring 60800868 from Zumtobel is an innovative solution for the flexible combination of the LED accent light module CARDAN evolution M. This single installation ring offers easy, tool-free assembly supported by a practical snap-in mechanism. Made from high-quality polycarbonate in an elegant matte silver finish, the ring is both functional and aesthetically pleasing. It is suitable for ceiling thicknesses ranging from 1 to 25 mm, allowing for straightforward installation in various interior spaces. The ring has a diameter of 160 mm and a mounting depth of 170 mm, making it an ideal choice for integrating LED lighting solutions. Additionally, the disassembly of the LED light module is intuitive and can be done with a separately available tool.
- Easy tool-free assembly through snap-in mechanism
- Anti-slip retaining springs for secure hold
- Suitable for ceiling thicknesses from 1 to 25 mm
- Intuitive disassembly of the LED light module with a tool.
6. Zumtobel Mounting rail 22170489
Zumtobel Group trunking TRINOS T 1500 SR
Manufacturer: Zumtobel Group
Designation: Trunking
Type: TRINOS T 1500 SR
Type of accessory/spare part: Other
Colour: Silver
Material: Aluminium
Length: 1500 mm
Width: 85 mm
Height: 62 mm
Trunking made of extruded aluminium coated with polyester resin lacquer in silver. Length: 1500 mm. Not pre-wired at the factory; mechanical connectors are included in the scope of delivery. When using the rail in chemically contaminated atmospheres, please consult your consultant.
Dimensions: 1500 x 85 x 62 mm
Weight: 2.33 kg.

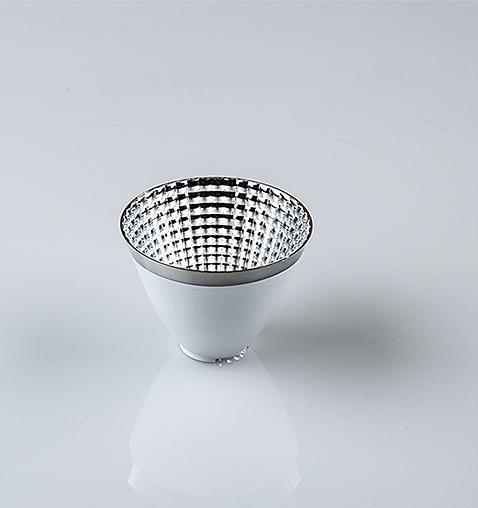

7. Zumtobel Interchangeable reflector, wideflood 60700280
The wideflood exchange reflector 60700280 from Zumtobel is a high-quality accessory for lighting systems, specifically designed to enable a wide light distribution. Made from robust polycarbonate coated with aluminum, this reflector not only features an appealing silver surface but also offers high resistance and durability. The exchange reflector is ideal for applications where uniform and comprehensive illumination is required. Its easy handling allows for seamless integration into existing lighting systems, enhancing light quality. The exchange reflector is an essential accessory for anyone who values efficient and effective lighting.
- Made from polycarbonate with an aluminum-coated surface
- Designed for wide light distribution
- Easy integration into existing lighting systems.

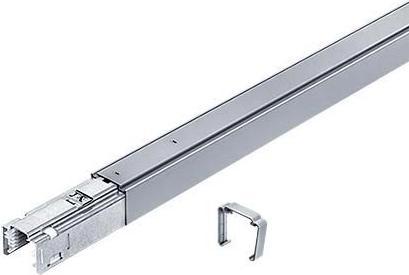

8. Zumtobel ZUMT mounting rail
Zumtobel Group trunking rail IP64 TECTON T 2000 SRIP64
Manufacturer: Zumtobel Group
Designation: Trunking rail IP64
Type: TECTON T 2000 SRIP64
Type of accessory/spare part: Other
Colour: Silver
Material: Steel
Length: 2001 mm
Width: 69 mm
Height: 60 mm
Further details: Corrosion-protected trunking rail made of profiled, hot-dip galvanised sheet steel with zinc-magnesium coating and polyester resin paint in silver. It features 11 conductors embedded in an integrated current-conducting profile. There are 5 mains leads (5 x 2.5mm²/16A) as well as 2 x 2 leads (4 x 1.5mm²/10A) for the integration of emergency lighting using two independently separated circuits and 2 leads (2 x 1.5mm²/10A) as control leads. Electrical tapping is possible without restriction over the entire length of the continuous row. A pre-assembled connector enables tool-free electrical and mechanical trunking connection as well as stepless current tapping in the joint area between two trunkings. A sleeve made of polypropylene and TPE for sealing the joint area between two trunking rails is included in the scope of delivery. Tool-free connection via electrical feed set.
Note: For use in chemically contaminated ambient atmospheres or high or condensed air humidity, please consult your consultant. Ambient temperature: -20°C to +45°C. Dimensions: 2001 x 69 x 60 mm, weight: 3.7 kg.

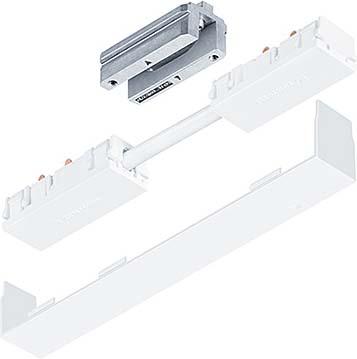

9. Zumtobel Sup2 Track Electrical Con 48v
The Sup2 Track Electrical Connector from Zumtobel is a high-quality electrical connector specifically designed for the mechanical and electrical connection of low-voltage track profiles. This product is made from robust die-cast aluminum and features a white polycarbonate cover that is not only functional but also aesthetically pleasing. Weighing only 0.07 kg, the connector is lightweight and easy to handle. It is designed for indoor use and provides a reliable solution for the installation of lighting systems. Please note that for use with H-profiles, one connector is required for the top and one for the bottom. The Sup2 Track Connector is an ideal choice for anyone seeking a safe and efficient connection in their lighting installations.
- Made from durable die-cast aluminum for high stability
- White painted polycarbonate cover for a modern design
- Suitable for connecting low-voltage track profiles
- Designed for indoor use, ideal for various lighting applications.
10. Zumtobel 22171331
Zumtobel Group Adapter PERLUCE #22171331
Manufacturer: Zumtobel Group
Description: Adapter
Type: PERLUCE #22171331
Accessory/Spare Part Type: Plug/Clamp
Color: Silver
The silver adapter enables the installation of the PERLUCE luminaire onto the lighting track system. The installation is tool-free and quick, allowing for flexible positioning of the luminaire using the adapter on the lighting track system. All screws for securing the rail and a fall protection are included.
Weight: 0.57 kg
EAN: 9010299156297.
