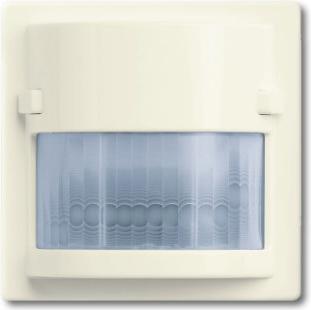

Busch-Jaeger Guardian Sensor SAV/EWS 6122/02-82

Manufacturer: Busch-Jaeger
Designation: Guardian Sensor SAV/EWS UP 180 Comfort
Type: 6122/02-82
Bus System KNX: yes
Bus System KNX Wireless: no
Bus System Wireless Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Design: Motion Detector
Mounting Type: Flush-mounted
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: glossy
Color: white
RAL Number (similar): 1013
With Bus Coupling: no
Operating Mode Switch: yes
Staircase Monitoring: yes
Optimal Mounting Height: 0.8 m
Max. Range to One Side: 43.953 m
Max. Frontal Range: 10 m
Detection Field Diameter on Floor: 6 m
Vertical Detection Angle: -40 to -5 °
Horizontal Detection Angle: 0 to 180 °
Number of Channels: 4
Min. Switch-on Duration: 10 s
Max. Switch-on Duration: 17 min
Min. Depth of Device Box: 33 mm

Busch-Jaeger Guardian Sensor SAV/EWS 6122/02-82: additional details
For Busch Installation Bus® KNX 6120/12-101, 6120/13 and Busch-Powernet® KNX 6920/12, 6920/13 and 6920/40. Motion detector with up to 4 channels. Includes 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.). If needed, please refer to the current online catalog for software and description. Suitable cover frames can be found in the carat®, pur stainless steel, solo®, Busch-axcent® or future® linear programs.
EAN: 4011395135174.
