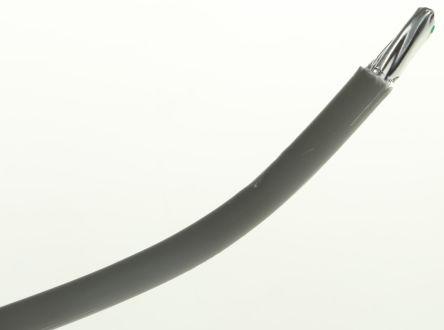

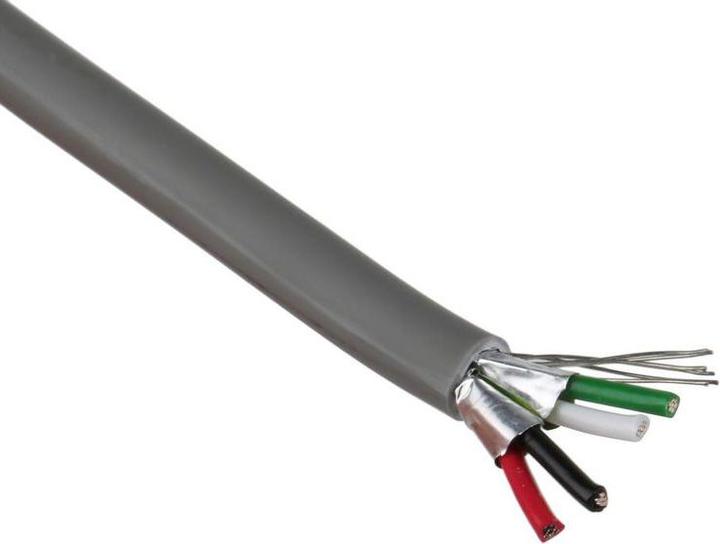

RS PRO CABLE MPIS HF 2PR 100M
100 mPrice in EUR including VAT
free shipping
Number of pairs: 2
Conductor cross section: 0.76 mm²
Cable type: Multicore
AWG: 24 AWG
Outer diameter: 4.2 mm
Shield type: Aluminum foil PET tape
Outer jacket material: LSZH
Jacket color: Grey
Core strands: 7/0.254 mm
Length: 100 m
These cables are not intended to be used as line cables or for direct mains connection of equipment. They are halogen-free multi-pair cables with overall shielding. The sheath is made of halogen-free polyolefin, which is flame retardant to BS 4066 and IEC 332 Part 3, and emits only small amounts of smoke when burnt. The conductors are made of 7/0.25 mm (22 AWG) tinned stranded copper, with polyolefin insulation and twisted into color-coded pairs.
cable type | Data cable |
Cable cross section | 0.76 mm² |
Cable length | 100 m |
Item number | 10252847 |
Manufacturer | RS PRO |
Category | Cable conductors |
Manufacturer no. | 8124753 |
Release date | 19.12.2018 |
External links |
Material | LS |
cable type | Data cable |
Cable cross section | 0.76 mm² |
Number of cores | 4 x |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Cable length | 100 m |
Outside diameter | 4.20 mm |
