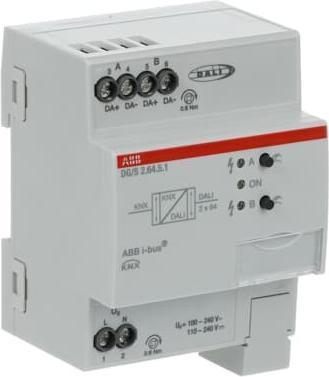

ABB Stotz S&J DALI-Gateway DG/S2.64.5.1

Manufacturer: ABB Stotz S&J
Designation: DALI Gateway Premium, 2-fold, REG
Type: DG/S2.64.5.1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Design: Interface Lighting System/DALI
Mounting Type: REG
Width in Division Units: 4
Number of Channels: 2
Max Number of Devices per Channel: 64
Disassembly Protection: no
With LED Display: yes
Updatable: yes
Operating Voltage: 100-240 V
Voltage Type: AC/DC
Power Consumption: 4 W
Provider Dependent: no
Visualization: no
Web Server: no
Wireless Interface: no
IR Interface: no
Protection Class (IP): IP20

The DALI-Gateway DG/S2.64.5.1 is a single-master DALI controller certified according to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 participants via ABB i-bus®. It features two DALI outputs for a maximum of 2x64 DALI participants. The DALI power supply is integrated. Control and status feedback occur via ABB i-bus® KNX for each DALI participant (2x64), with lighting groups (2x16), either collectively in broadcast or via scenes (2x16). DALI devices of type DT1 (self-sufficient emergency power converter according to EN 62386-202) and type DT8 (color temperature Tc & RGB(W) according to EN 62386-209) are supported. Other DALI participants, such as DT6, can be controlled via standard DALI commands according to EN 62386-102.

Integrated functions include slave, stairwell, forced, lock, and scene functions. Color functions such as setting/dimming, HSV(W), Dim2Warm, and HCL are possible. A standby shutdown in combination with a KNX switching actuator (e.g., SA/S), 4 sequences per DALI output, and the ability to integrate the DALI gateway into a load control system are provided. For diagnosis and individual modification of the DALI address or group assignment, a separate software tool (ABB i-bus® Tool) is available.

EAN: 4016779067218.
