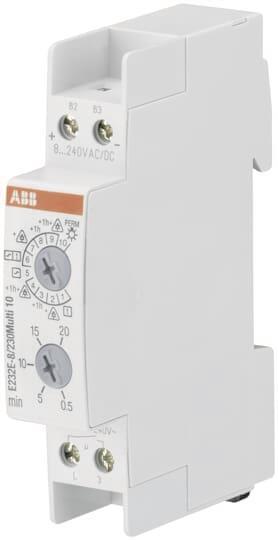

ABB Stotz S&J Stair Light Timer Switch E232E-8/230-MULTI1

Manufacturer: ABB Stotz S&J
Description: Stair Light Timer Switch
Type: E232E-8/230-MULTI1
Function: electronic
Mounting type: DIN rail
Width in modular units: 1
Installation depth: 59 mm
Number of contacts as normally open: 1
Control voltage 1: 230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50-60 Hz
Control voltage 2: 230 V
Control voltage type 2: AC/DC
Frequency of control voltage 2: 50-60 Hz
Rated switching current: 16 A
Max. switching current (cos phi 0.6): 16 A
Fall-back delay: 0.5-20 min
Button glow lamp current: 150 mA
Wiring type: 3- and 4-wire circuit
Switch-off pre-warning: flicker
Selectable pulse function: no
After-switching: after-switchable + continuous light + time extension
Supply voltage: 0.85-1.1 V
Type of supply voltage: AC
Max. incandescent lamp load: 3600 W
Max. fluorescent lamp load: 3600 VA

Stair light timer switches with fall-back delay are activated by buttons, which are often equipped with a glow lamp. The switching levers are designed for a glow lamp current of up to 150 mA, making them ideal for installations in multi-story buildings. The stair light timer switch with fall-back delay E 232-230 features an electromechanical time relay with synchronous motor drive, ensuring high operational reliability in any installation position. The time range can be set in 15-second increments from one to seven minutes. After-switching is possible after 30 seconds. The multifunctional devices of the product lines E 232E-230 Multi 10 and E 232E-8/230 Multi 10 offer 10 functions that can be set on the device front. EAN: 4016779654197.
