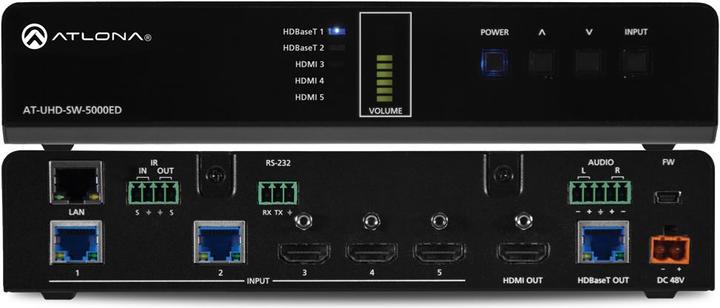

The Atlona AT-UHD-SW-5000ED is a 5×1 switcher featuring two HDBaseT inputs, three HDMI inputs, mirrored HDMI and HDBaseT outputs, balanced audio outputs, automatic input selection, and automatic display control. The HDBaseT inputs are perfectly suited for the HDVS-200-TX modules, allowing VGA and HDMI sources to be easily integrated into a system. The switcher supports 4K/UHD at 60 Hz, 4:2:0 (10.2 Gbps). It transmits AV signals along with Ethernet, power, and control over a single cable to displays located up to 100 meters away from the switcher. Control options include automatic input selection, buttons on the front panel, and compatibility with IR, RS-232, or TCP/IP-based control systems. Displays are automatically powered on and off via CEC, IP, or RS-232.

With the SW-5000ED, two HDVS transmitters can be used within a single system. The Ethernet-enabled HDBaseT transmission to the HDVS transmitters and control of the receiver simplify setup and maintenance. Automatic input selection and display control streamline the system, reduce costs and setup time, and lead to a better experience for the end user.
