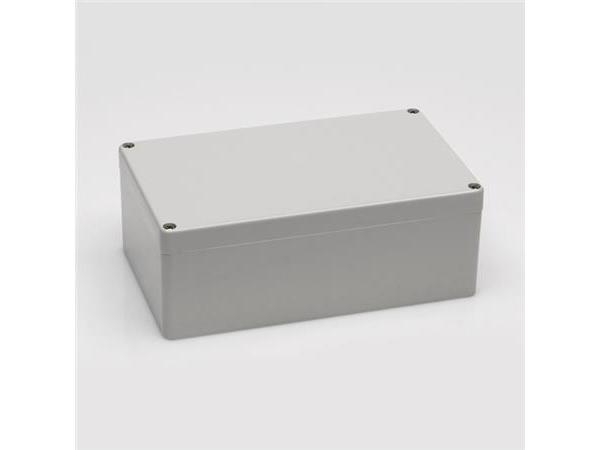

Bernstein housing complete GEH.CT-762.

Manufacturer: Bernstein
Description: Housing complete 200x120x75mm, 373g
Type: GEH.CT-762
Type of mounting: Other
Type of cover: Closed
Type of door: Without
Transparent cover/door: No
With lock: No
Height: 75 mm
Width: 120 mm
Depth: 200 mm
Material thickness of housing: 3.5 mm
Material thickness of door/lid: 3.5 mm
Colour: Grey RAL number 7035
Mounting option: Yes
Enclosure material: Plastic
With mounting plate: No
Suitable for outdoor use: No
Suitable for lightning protection: No
Protection class (IP): IP66
Protection class (NEMA): Other
Protection class: II
Impact resistance: IK07
Cover with pressure relief: No

Further details: Empty enclosure, protection class IP66 to DIN EN 60529, low weight, good insulation properties. Mounting lugs for holding and fastening fixtures (mounting rail, mounting plate, etc.). Material: ABS. Seal: Foamed PUR seal. Cover screws: Quick-locking principle, stainless steel, captive, combination Phillips head. Temperature range: -40°C to +80°C.
