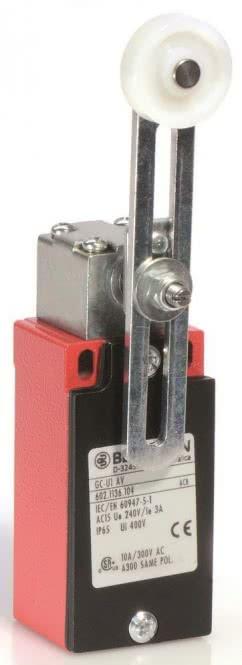

Bernstein Limit Switch GC-U1 AV

Manufacturer: Bernstein
Designation: Metal limit switch
Type: GC-U1 AV
Sensor width: 36 mm
Sensor height: 48 mm
Sensor length: 184.5 mm
Rated operational current Ie at AC-15, 230 V: 3 A
Switching function: Slow action contact
Latching switching function: no
Electronic output: no
Forced opening: no
Number of safety-related auxiliary contacts: 1
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Interface design: none
Interface design for safety-related communication: none
Enclosure design: Rectangular
Material of the enclosure: Metal
Coating of the enclosure: Powder-coated
Design of the actuator: Adjustable toggle lever
Orientation of the actuator: Other
Design of the electrical connection: Cable entry (metric)
With status indicator: no
Suitable for safety functions: yes
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -30 to 80 °C
Protection class (IP): IP65

The metal-encapsulated limit switch is suitable for almost any application in the field of safety applications and position detection due to its compact design. The switch offers various mounting advantages, such as screw connections with self-lifting clamping washers, captive cover screws, and a switching system that can be easily replaced thanks to a latching mechanism. Versions with custom cables and connectors are also available as an option.
