Rated secondary voltage: 6V AC
Rated power: 18VA
Rated primary voltage: 115V AC, 230V AC
Number of outputs: 2
Length: 68mm
Width: 27.6mm
Depth: 57mm

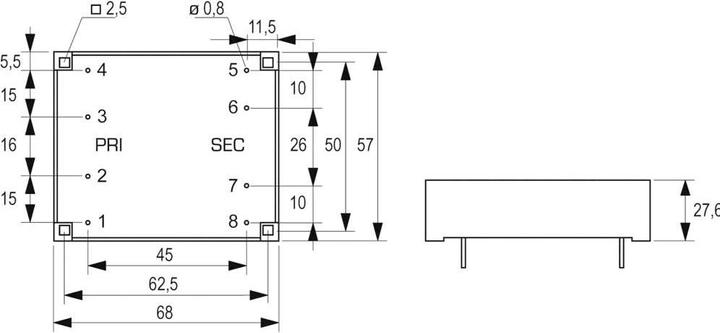

Dimensions: 68 x 27.6 x 57mm
Weight: 375g
Mounting type: Push-through mounting
Maximum temperature: +40°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz

Transformers with 2 x 24 V outputs are not approved according to VDE, SEV. PCB mount, flat, 115 / 230 Vac primary. Two primary windings for 115 Vac, 50 to 60 Hz, for series or parallel connection. Two secondary windings for series or parallel connection. Compact flat design. Vacuum epoxy resin moulding according to class UL94-V0. Two-piece coil made of glass fibre reinforced polyamide. 100% electrical testing and breakdown test. Low capacitance between the windings. Low noise. Additional mounting holes for safe PCB mounting. Standard: EN60742, VDE 0551, IEC 61558.
