Supply voltage: 24 V DC
Number of connections: 2
Operation: Control
Connection: G3/4, female thread
Connection size: 3/4 inch
Valve position standard: Normally closed
Operating range: Liquid
Type: 2/2
Valve opening: 13 mm
Body material: Brass
Operating pressure max: 10 bar
Operating temperature range: -10 to +80 °C
Minimum operating temperature: -10 °C
Maximum operating temperature: +80 °C
Flow factor Kv: 3.6 m³/h

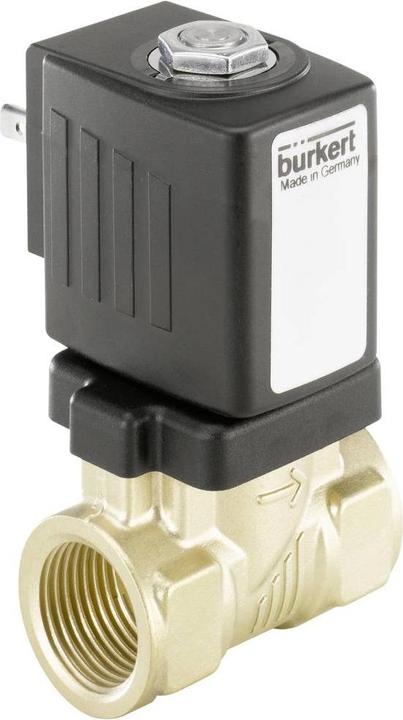

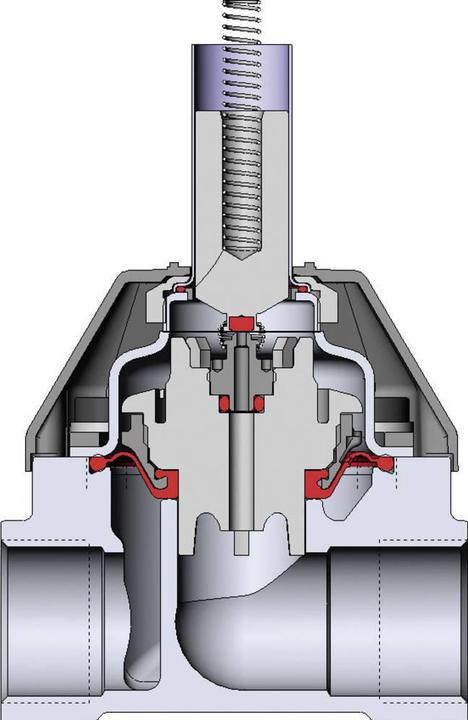

Due to their internal complexity, these valves can only be used with clean, neutral media. The electrical connector can be ordered separately. This solenoid valve series DS6213-EV is a 2/2 brass valve. It is a new series of 2-way solenoid valves designed as normally closed from Burkert. Made of brass, it is suitable for use with water and inert liquids and gases. The soft mechanical coupling between the main spool and pilot armature supports smooth actuation, and the precision machined main body path contributes to quiet, water hammer-free operation. It is suitable for a variety of applications including compressed air and vacuum systems, heating and air conditioning, water treatment, and swimming pool equipment. Its compact size simplifies installation where space is limited. The operating pressure is 0-10 bar with a response time of 0.1-4 seconds. It opens without differential pressure, requiring a minimum pressure differential of 0.5 bar for full opening, and has a high flow rate. The sealed coil has IP65 protection.
