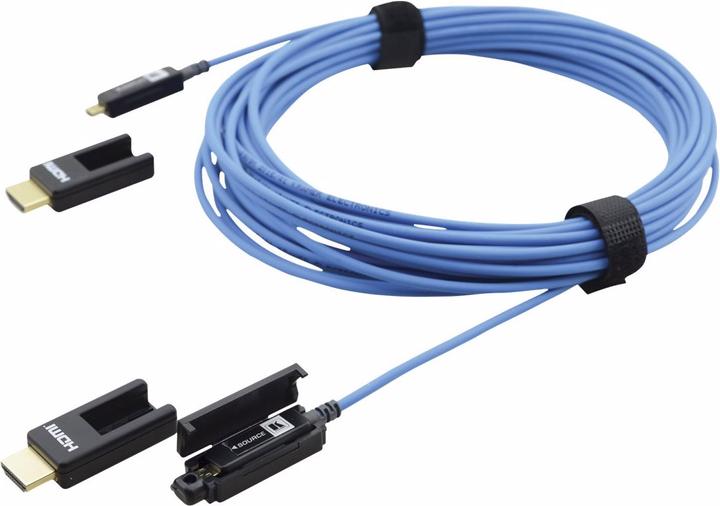

Kramer’s AOCH/XL is an active optical HDMI cable designed for running 4K at 60Hz 4:2:0 UHD and 4K at 30Hz 4:4:4 over longer distances up to 100m (328ft) in a simple and practical way. The HDMI ends of this hybrid-fiber cable quickly detach, leaving a much smaller head that can be run through conduit or other tight spaces with the included pulling capsule. DVI ends can be purchased separately. The AOCH cables are thinner, lighter, and more flexible than copper or even standard optical cables. They provide transparent EDID and HDCP support without signal attenuation. They also reduce the risk of EMI and RFI interference, making them an ideal solution for critical AV installations that demand the highest signal integrity.

• Video resolution: 4K at 60Hz 4:2:0 UHD, 4K at 30Hz 4:4:4 8Bit, full HD, 3D Deep Color across all lengths.
• High data transfer rate: Up to 10.2Gbps.
• Embedded audio: PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio.
• High-quality connectors: 24K gold-plated, corrosion-resistant for the best possible connectivity.
• EMI and RFI immunity.
• No external power: Powers the active units via the HDMI connector, consuming only 0.25W (50mA at 5V).
• Thin construction: 3.4mm (0.13") diameter.
• Small bending ratio: Only 6mm (0.24").
• Jacket construction: Low smoke and halogen-free or UL CMP-OF (Plenum).
• RoHS 2011/65/EU compliant.
