For use with: em4 series
Number of inputs/outputs: 26
Manufacturer series: em4 Local
Number of inputs: 16
Input type: Analog, digital
Voltage category: 24 V dc
Output type: Relay, static
Set includes: No
Number of outputs: 10
Network type: Modbus with accessories
Display included: Yes
Communication interface type: Modbus RS485 with accessories
Programmable interface: USB
Width: 90 mm

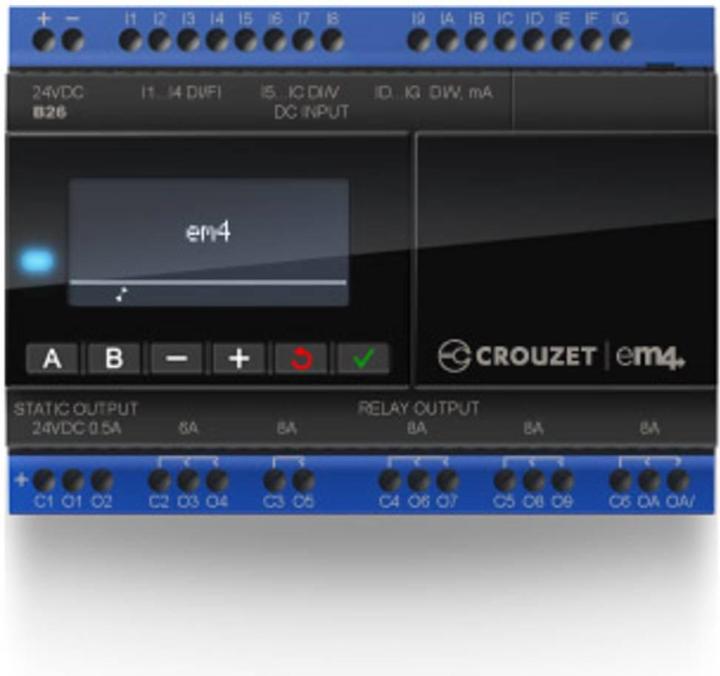

CE, cULus approval, IEC/EN 61000-6-1, 2, 3, and 4 according to 2001/108/EC EMC directive. em4 Ethernet CPU B26 24 V dc. The most intuitive and easy-to-use Nano PLC in your Ethernet network. With the Crouzet em4 Ethernet, communication with up to 16 em4 Ethernet devices or other devices using the Ethernet Modbus TCP/IP standard protocol as client and server is possible. Program and debug your em4 Ethernet from anywhere (within the local Ethernet network). Simplified addressing procedure between two em4 units. Very accurate 4-20 mA analog inputs for industrial sensors. 4 lines with 18 characters per line with a highly visible display. Large memory for application and remote function programming. Manage time-controlled or trigger-based data exchange between devices over the Modbus TCP/IP network. Receive scheduled simple data logs via email or FTP. Send email notifications, fully controlled by the application program.
