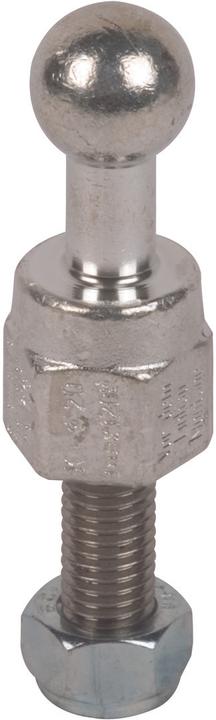

DEHN Ball Anchor Point KFP 20 M12 45 SN7078

Manufacturer: DEHN

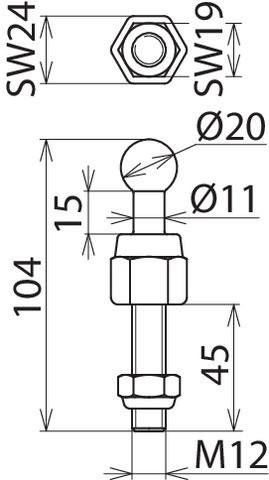

Description: Ball anchor point D 20mm straight
Type: KFP 20 M12 45 SN7078
Max. Short-circuit current: 33.5 kA
Design: straight
Mounting type: with threaded bolt
Connection of the EuK device: Ball anchor point 20 mm
Max. Rope cross-section copper: 120 mm²
Diameter of anchor point: 20 mm

Further details: Straight ball anchor point, with threaded bolt and nut as phase-side and earth-side connection point according to DIN VDE 0683-100 (EN/IEC 61230) on the conductor and grounding system. High mechanical strength due to the chipless formed thread. Also suitable as a cable lug and busbar connection according to DIN 43673-1.
EAN: 4013364131309.
