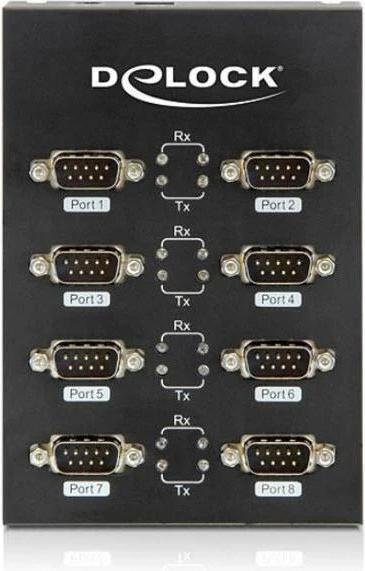

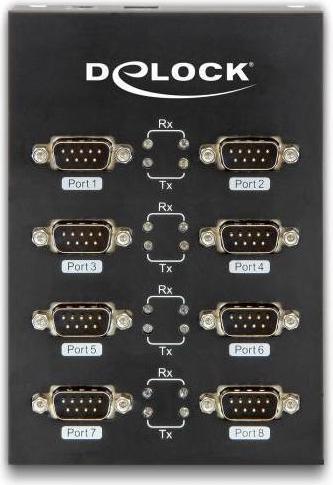

The Delock USB 2.0 to Serial Adapter allows you to connect up to 8 serial devices to a free USB port on your PC or notebook.

Specifications

• Connections:

1 x USB 2.0 Type-B socket
8 x Serial RS-232 DB9 connectors
1 x 5 V DC power socket

• Chipset: Moschip
• Serial connector with nuts
• Data transfer rate up to 921.6 Kbps
• LED indicator
• Automatic selection of IRQ and I/O addresses
• Eight 16C450 / 16C550 compatible UARTs
• Supports FIFO 512 bytes per port (receive/send)

Power Supply Specifications

• Plug-in power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 1 A 5.0 W
• Outer negative, inner positive

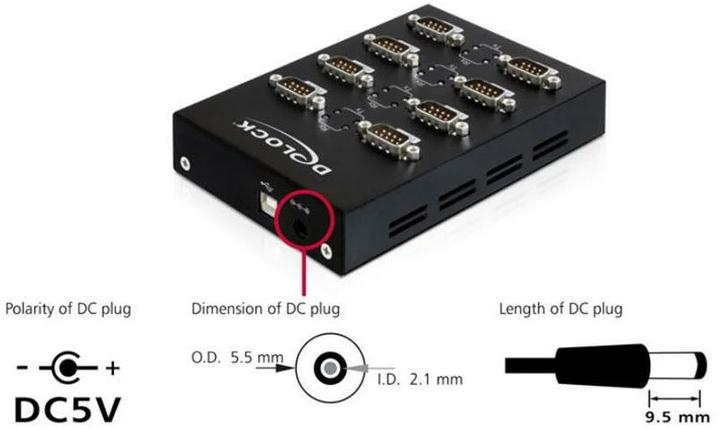

• Dimensions:

inner: approx. 2.1 mm diameter
outer: approx. 5.5 mm diameter
length: approx. 9.5 mm

System Requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or notebook with a free USB Type-A port

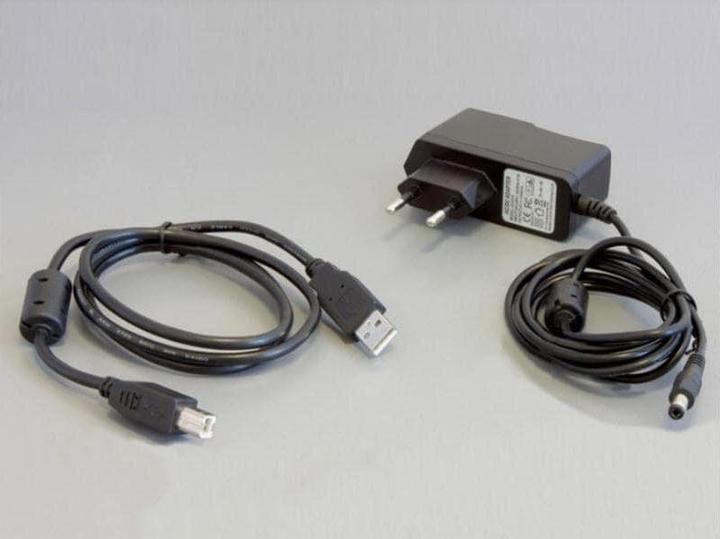

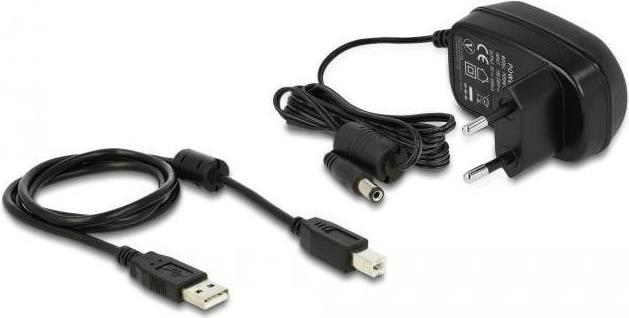

Package Contents

• USB 2.0 to 8 x Serial Adapter
• USB 2.0 connection cable
• External power supply
• Driver CD
• User manual.
