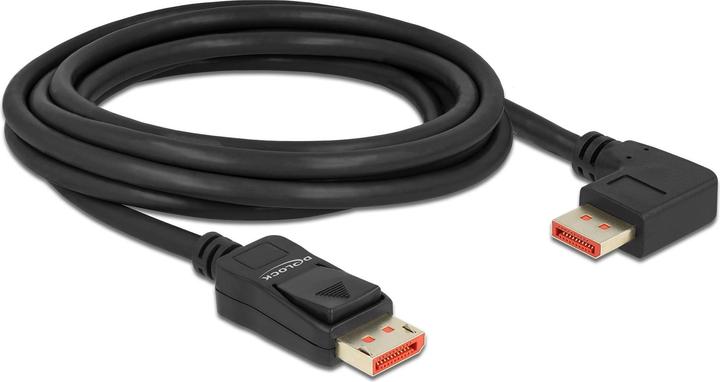

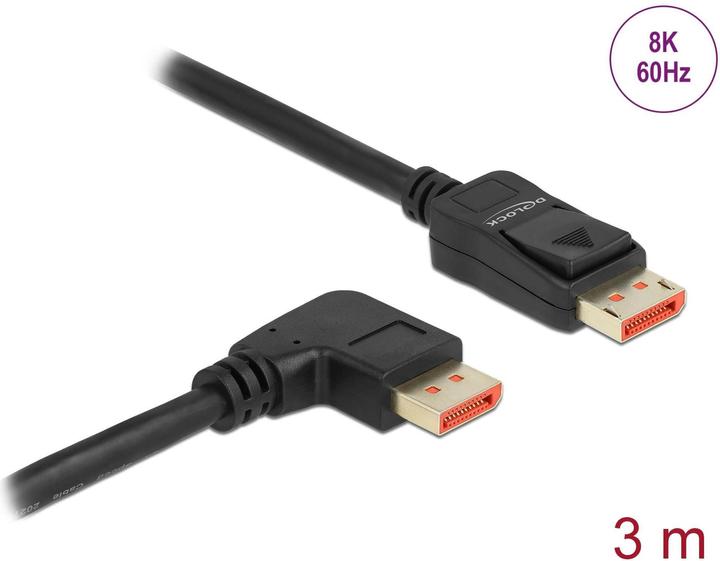

This DisplayPort cable from Delock is designed to connect devices with a DisplayPort interface, such as monitors, projectors, or televisions, to a PC or laptop. With support for a maximum bandwidth of 32.4 Gb/s, it can transmit content in 8K Ultra HD (7680 x 4320 @ 60 Hz), 5K (5120 x 2880 @ 120 Hz), and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple-shielded cable also significantly enhances the quality of audio transmissions with a sampling rate of up to 1536 kHz.

Specifications:

• Connectors:

1 x DisplayPort plug
1 x Angled DisplayPort plug

• DisplayPort 1.4 specification
• Backward compatible with DisplayPort 1.3, 1.2, and 1.1
• Pin 20 is not connected
• Wire gauge: 28 AWG
• Cable diameter: approx. 7 mm
• Copper wire
• Triple-shielded cable
• Gold-plated contacts
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gb/s
• Resolution up to:

Monitor with DSC support:
7680 x 4320 @ 60 Hz
5120 x 2880 @ 120 Hz
3840 x 2160 @ 240 Hz
Monitor without DSC support:
7680 x 4320 @ 30 Hz
5120 x 2880 @ 60 Hz
3840 x 2160 @ 120 Hz
(dependent on the system and connected hardware)

• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.3
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports color sampling in formats 4:4:4, 4:2:2, and 4:2:0
• Color: black
• Length including connectors: approx. 3 m

System requirements:

• An available DisplayPort interface

Package contents:

• DisplayPort cable.
