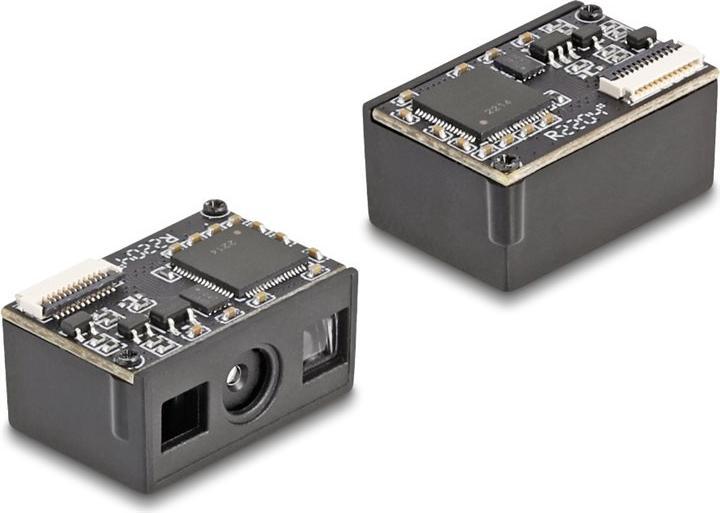

This barcode scanner module from Delock can be used for installation in any housing.

The module impresses with its size of 21 x 14 x 9 mm. It can accurately capture all common 1D and 2D barcode types even from a distance. Additionally, the scanner recognizes barcodes displayed on screens and monitors.

The scanner automatically adjusts to the ambient light and can capture up to 30 scans per second under optimal lighting conditions. In low ambient light, the barcode is illuminated by an additional white LED, making it usable even in poor lighting conditions.

Note: This module is intended exclusively for outputting the German keyboard layout.

Specifications:

• Connection: 1 x FPC 12 Pin socket
• Decoding chip: ARM Cortex 32 Bit
• Resolution: max. 640 x 480
• Reading distance: approx. 30 mm to 350 mm
• Reading accuracy: 4 mil
• Light color: visible red LED
• Compensation light: white LED
• Sensor: CMOS image sensor
• Scan rate: up to 30 scans per second
• Scan angle: 44°
• Ambient light: max. 100,000 Lux
• Input voltage: 3.3 V
• Current consumption: Operating: max. 110 mA, Standby: max. 60 mA
• Operating temperature: -20 °C to 60 °C
• Storage temperature: -40 °C to 80 °C
• Relative humidity: 0 - 95 % (non-condensing)
• Color: black
• Weight: approx. 2 g
• Dimensions (LxWxH): approx. 21 x 14 x 9 mm
• Scan codes: Code 128, Code 39, Interleaved 2 of 5, EAN-8 / EAN-13, ISBN - 13, Data Matrix, PDF417, QR Code

System requirements:

• Android 11.0 or higher
• iPad Pro (2018)
• Linux Kernel 5.15 or higher
• Mac OS 12.4 or higher
• Windows 8.1/8.1-64/10/10-64/11

Package contents:

• Barcode scanner module
• 2 x FPC 12 Pin flat ribbon cables, length approx. 6 cm
• 2 x FPC 12 Pin flat ribbon cables, length approx. 20 cm
• User manual

Packaging:

• White Box.
