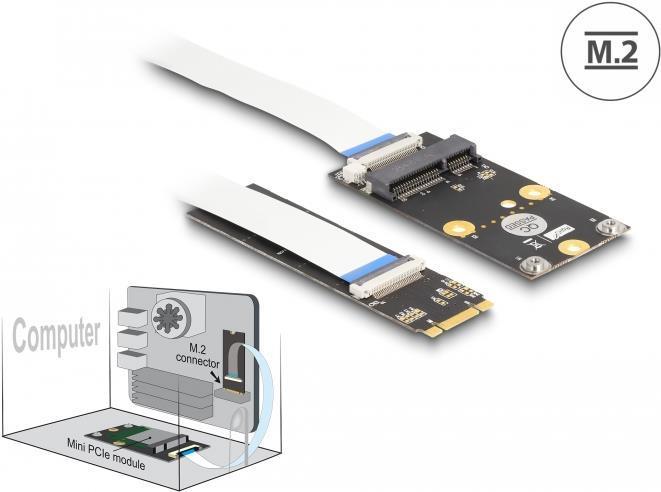

This converter from Delock transforms the M.2 Key B or Key M interface into a Mini PCIe interface. Various Mini PCIe modules with USB and PCIe support can be connected to this converter. For example, WLAN, Bluetooth, GNSS, 4G, 5G, HSPA, and NFC modules can be used at the M.2 Key B or Key M interface. Additionally, it is possible to utilize both functions simultaneously with a module that supports WLAN and Bluetooth.

Specifications

• Connections:

1 x M.2 Key B+M connector
1 x Mini PCIe slot
1 x 2-pin header for USB connection

• PCI Express Rev. 2.0
• Interface: PCIe + USB
• M.2 form factor: 2280
• Mini PCIe form factor: half size and full size
• Suitable for M.2 slot with Key M or Key B based on PCIe
• Dimensions (LxWxH):

M.2 card: approx. 80 x 22 x 3 mm
Mini PCIe card: approx. 66 x 32 x 5 mm

System Requirements

• An available M.2 Key B or Key M slot

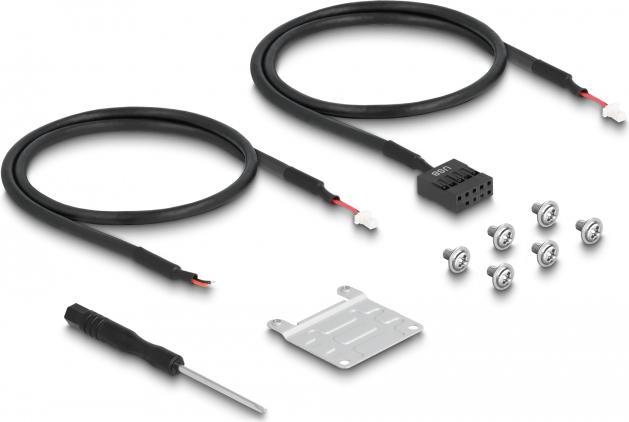

Package Contents

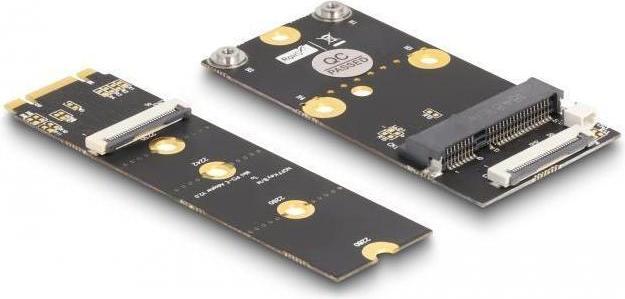

• M.2 converter board
• Mini PCIe board

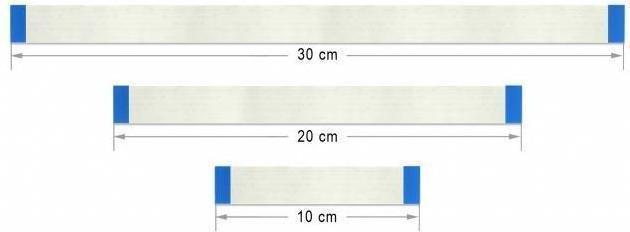

• 3 x flat ribbon cables, lengths approx.: 1 x 10 cm, 1 x 20 cm, 1 x 30 cm
• 2-pin to USB 2.0 header cable, length approx. 40 cm
• 2-pin to open wire ends cable, length approx. 40 cm
• Mini PCIe extension
• Screws
• Screwdriver
• User manual

Packaging

• Retail box.
