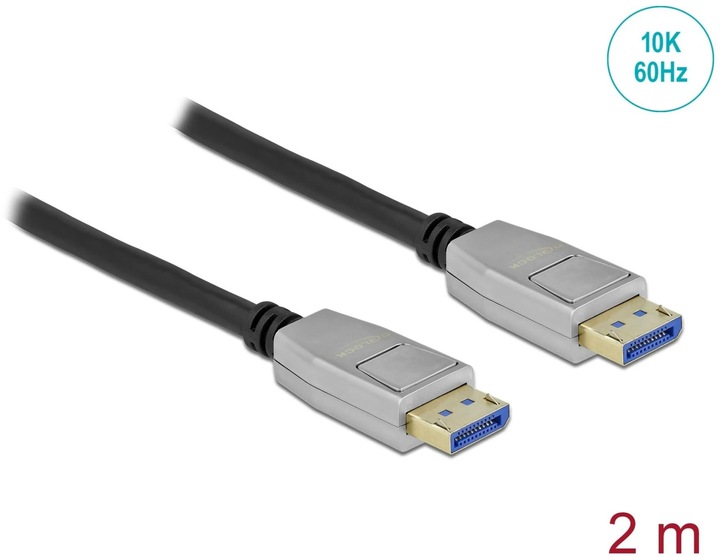

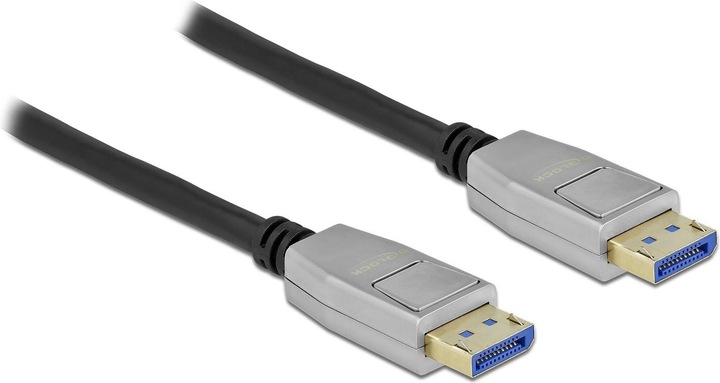

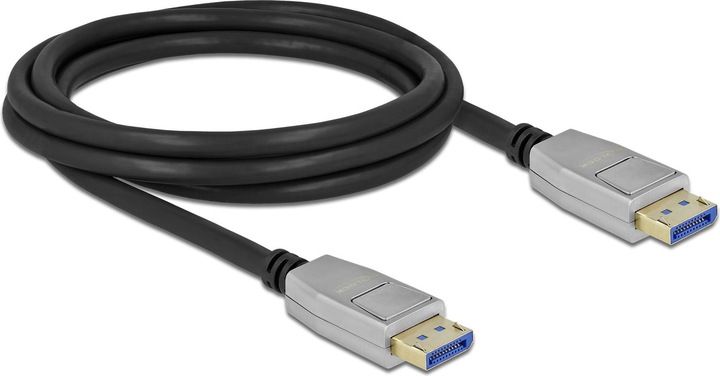

This cable from Delock is designed to connect devices with a DisplayPort interface, such as monitors or televisions, to a PC or laptop.

10K Resolution and HDR Support
With support for a maximum bandwidth of 54 Gbps, content can be displayed at resolutions up to 10K (10240 x 4320 @ 60 Hz). HDR support ensures that colors are rendered realistically with impressive depth, while brightness and contrast are optimally reproduced.

Specifications

• Connectors:

1 x DisplayPort plug
1 x DisplayPort plug

• DisplayPort 2.0 specification
• Backward compatible with DisplayPort 1.4, 1.3, 1.2, and 1.1
• Pin 20 is not connected
• Connectors with metal housing
• Wire gauge: 28 AWG
• Cable diameter: approx. 7 mm
• Copper wire
• Triple-shielded cable
• Contacts gold-plated
• Connector finish: gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 54 Gbps
• Resolution up to:

Monitor with DSC support: 10240 x 4320 @ 60 Hz
Monitor without DSC support: 10240 x 4320 @ 30 Hz
(depending on the system and connected hardware)

• Supports Display Stream Compression 1.2a (DSC)
• Supports HDR10
• Supports HDCP 1.4 and 2.3
• Supports UHBR 13.5 (13.5 Gbps / Lane) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports color sampling in formats 4:4:4, 4:2:2, and 4:2:0
• Color: black
• Length including connectors: approx. 2 m

System Requirements

• A free DisplayPort interface

Package Contents

• DisplayPort cable.
