With this adapter from Delock, the audio signal can be extracted from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be output digitally (S/PDIF) or analog (stereo) to other devices, such as headphones or a surround receiver.

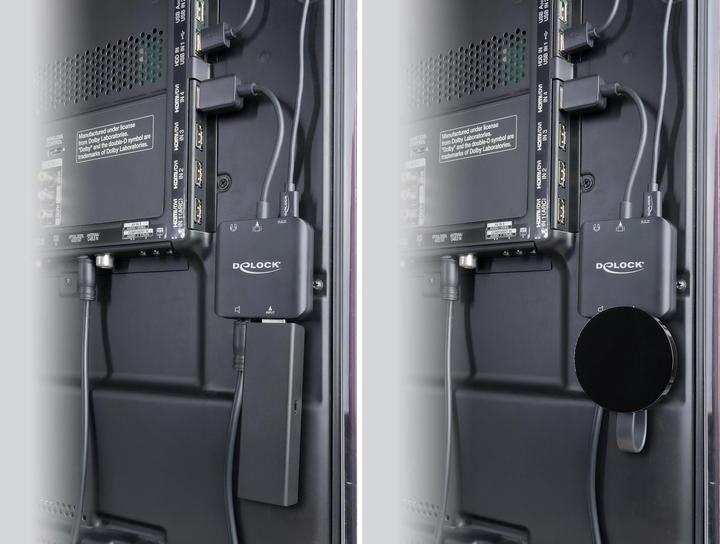

The device can be connected directly to the monitor or TV. The short cable fits easily into side or recessed HDMI ports. The source, such as a TV streaming stick, can be plugged into the input port.

Input connections:

• 1 x HDMI-A socket
• 1 x USB Type Micro-B socket (5 V power supply)

Output connections:

• 1 x HDMI-A plug
• 1 x 3.5 mm 3-pin jack (audio)
• 1 x TOSLINK socket S/PDIF

High Speed HDMI, 3D, and HDCP 1.4 / HDCP 2.2. Supports HDR (High Dynamic Range). Automatic switching to stereo (2.0) when using the jack and automatic muting of the digital output. Resolution up to 3840 x 2160 @ 60 Hz. Video bandwidth up to 600 MHz / 6 Gbps, maximum 18 Gbps. Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio. Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on the system and connected devices). CEC and HDMI audio are passed through to the output. Power supply via USB (power adapter not included). Power consumption: maximum 2 W. Color: black. Cable length without connectors: approximately 12.5 cm. Dimensions without cable (LxWxH): approximately 58 x 58 x 16 mm.

Package contents:

• HDMI Audio Extractor
• USB Type-A to Type Micro-B cable, length approximately 30 cm
• User manual.
