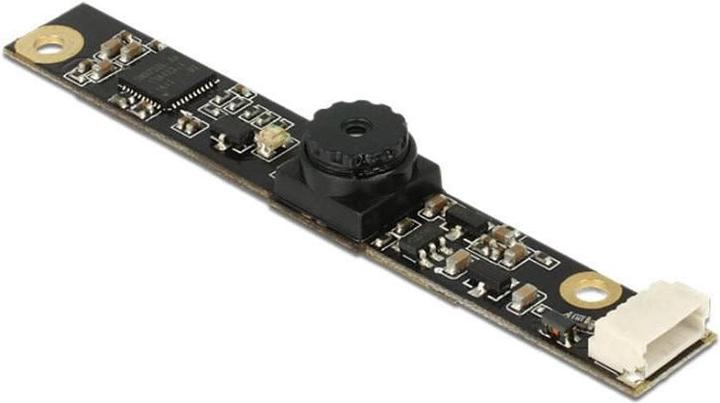

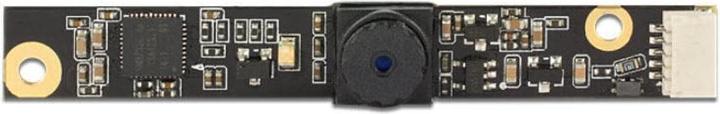

USB 2.0 IR Camera Module 5.04 Megapixel 48° V5 Fixed Focus

The Delock USB 2.0 camera module offers high resolution in a very compact design with low power consumption. It is ideal for integration into industrial components such as IPCs, embedded systems, sensors, notebooks, smartphones, tablets, and in device manufacturing. With the use of suitable IR lights, recordings in darkness are possible due to the absence of an optical IR filter. The use of a light-sensitive sensor with back-side illumination (BSI) expands the application range of this module.

General

Supported operating systems: Linux Kernel 2.6.15 or higher; Windows 10 32-Bit, Windows 10 64-Bit, Windows 7 32-Bit, Windows 7 64-Bit, Windows 8 32-Bit, Windows 8 64-Bit, Windows 8.1 32-Bit, Windows 8.1 64-Bit, Windows Vista 32-Bit, Windows Vista 64-Bit
Operating system requirements: Windows with DirectX from 9.0c; Linux with Video4Linux

Interface

Connection: USB 2.0

Technical Specifications

Operating voltage: 5 V
Operating temperature: 5°C ~ 50°C
Maximum image resolution: 2592 x 1944 @ 7 fps
Minimum image resolution: 160 x 144 @ 30 fps
Sensor size: 1/4"
Current consumption: 140 mA @ 640 x 480

Physical Properties

Length: 60 mm
Width: 8 mm
Height: 13 mm.
