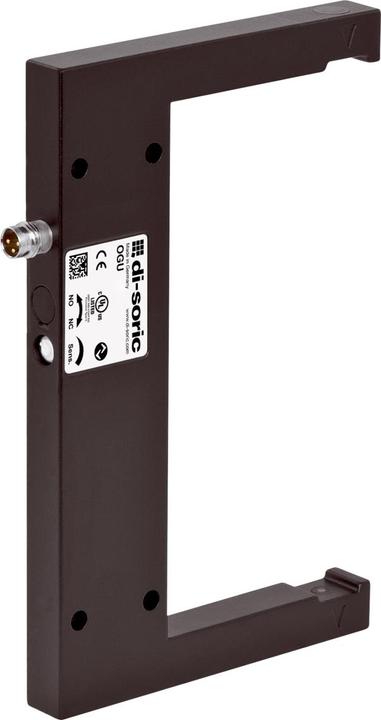

The OGU 121 G3-T3 fork light barrier from Di-Soric is a state-of-the-art electronic module based on the principle of optical detection. It uses an LED as the light source and provides precise detection of objects within a fork width of 120 mm. With an operating voltage of 10 to 30 V DC and a maximum no-load current of 30 mA, this module is suitable for a wide range of applications. The fork light barrier is equipped with a push-pull switching output that allows a switching capacity of up to 100 mA and can be configured as both Normally Open (NO) and Normally Closed (NC). The IO-Link interface (V1.1) enables easy integration into modern automation systems and offers high flexibility in application. The zinc die-cast housing is powder-coated, ensuring high robustness, while the operating temperature range of -25 to +60 °C guarantees reliable use in various environments.

• Optical operation with LED light source
• Push-pull switching output with 100 mA
• IO-Link interface for easy integration
• High reproducibility of 0.02 mm
• Robust housing made of powder-coated zinc die-cast.
