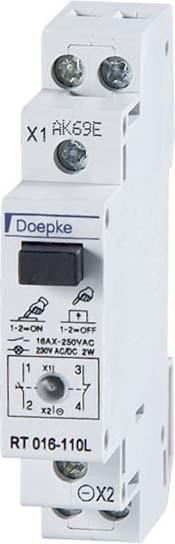

Doepke Push Button with LED RT 016-110L

Manufacturer: Doepke
Description: Push Button with LED
Type: RT 016-110L
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Switching current: 16 A
Switching voltage: 250 V
Voltage type: AC
With signal lamp: yes
Color of the dome: yellow
Light source: LED
Lamp base: other
Max. lamp power: 2 W
Lamp voltage: 50..240 V
Color of the button: black
Width in modular units: 1
Installation depth: 60 mm
Protection class (IP): IP40

Doepke Push Button with LED RT 016-110L: additional details
Control buttons generate impulses for electrical consumers or controls. Control buttons of the RT series have normally closed or normally open contacts. With a compact design, they can also switch high currents. The normally closed/normally open variant is available with LED.

Features:

• Operation via button
• Versions with different rated currents
• Contact configurations available with or without orange LED
• Non-loosable lift terminals with back insertion and touch protection
• Large terminal cross-section
• Compact design
• Mounting type: Quick mounting on mounting rail
• Installation position: any

Areas of application:
The components offer universal applications in control tasks in industrial and building technology as well as in residential installations.
EAN: 4014712155022.
