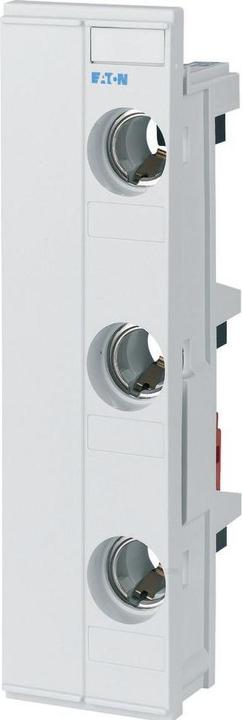

The Eaton MOE Z-D02/R/3-54 fuse holder D02 E18 63A 3p is a high-quality electronic accessory designed for use in various electrotechnical applications. This fuse holder provides a reliable and secure connection for fuse inserts in accordance with the standards IEC/EN 60269-1 and VDE 0636 Part 301. It is equipped with a touch protection cover that includes both a front and a base plate to ensure safety during operation. The holder is suitable for both vertical and horizontal installation and can be used in busbar systems with a thickness of 5 or 10 mm. The rail locking mechanism allows for easy mounting on busbars with widths ranging from 12 to 30 mm. Additionally, the holder is halogen-free, phosphorus-free, silicone-free, and recyclable, making it an environmentally friendly choice. A labeling field on the holder and cover allows for clear identification of the fuse inserts.

• Includes touch protection cover with front and base plate
• Suitable for fuse inserts DIN 49522 D02 20...63A 400VAC / 250VDC
• Vertical and horizontal installation possible
• Halogen-free, phosphorus-free, silicone-free, recyclable
• Rail locking for busbars with widths of 12 to 30 mm.
