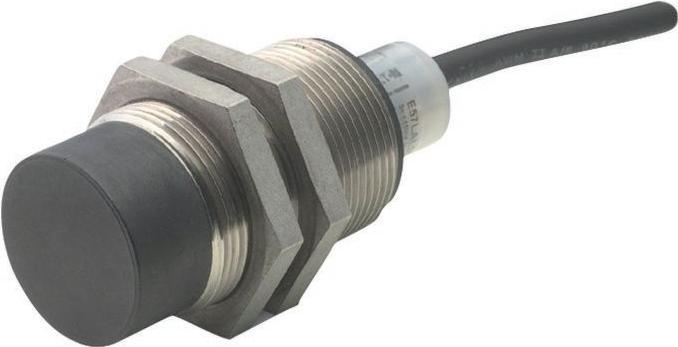

The proximity switch of the E57 Premium+ series from Eaton is a highly advanced electronic module designed for precise and reliable applications in automation technology. With a robust design of M30 x 1 mm and a semi-flush mounting style, this inductive sensor offers high flexibility during installation. The switch operates with a rated operating voltage of 6 to 48 V DC and achieves a rated switching distance of 22 mm, making it ideal for various industrial applications. The use of stainless steel in the housing ensures durability and resistance to environmental influences. With an IP67 protection rating, the sensor is dust-tight and protected against temporary immersion in water, making it suitable for use in demanding environments. The switch is equipped with an NPN switching type and features a 2 m long connection cable, allowing for easy integration into existing systems.

• Inductive sensor with a switching frequency of 300 Hz
• IP67 protection rating for high environmental resistance
• Robust stainless steel housing
• Suitable for non-flush mounting
• Complies with standards IEC/EN 60947-5-2.
