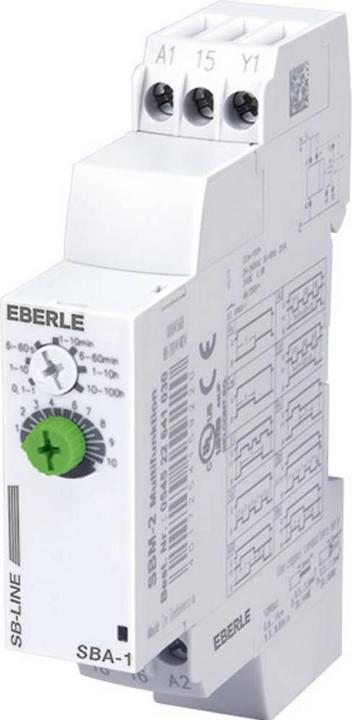

Eberle Controls Time Relay SBA-1/17.5mm

Manufacturer: Eberle Controls
Designation: Time Relay
Type: SBA-1/17.5mm
Electrical connection type: Screw connection
Delayed response function: yes
Delayed drop-out function: no
Switch-on pulse function: no
Switch-off pulse function: no
Star/delta function: no
Pulse shaping function: no
Flashing function starting with pause, fixed time: no
Flashing function starting with pulse, fixed time: no
Pulsing function starting with pause, variable: no
Pulsing function starting with pulse, variable: no
With plug socket: no
Remote control possible: no
Suitable as remote control: no
Can be plugged onto contactor: no
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 20.4..27.6 V
Type of voltage for operation: AC/DC
Rated current: 8 A
Time range: 0.1..360000 s
Number of outputs, delayed, changeover: 1
Outputs, switchable delayed/undelayed: no
With semiconductor output: no
Suitable for DIN rail mounting: yes
Suitable for front mounting: no

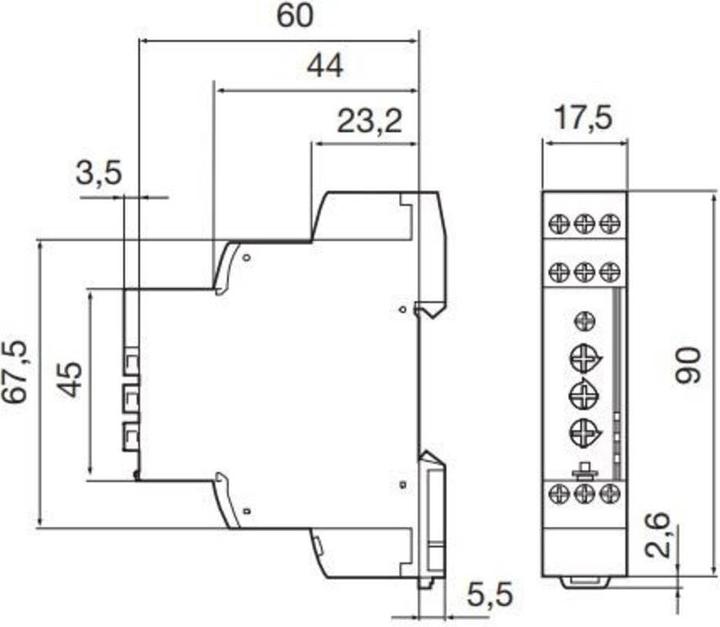

Width: 17.5 mm
Height: 90 mm
Depth: 63.5 mm

Eberle Controls Time Relay SBA-1/17.5mm: additional details
A delayed pull-in relay with a changeover contact from the SB-Line series. The setting of the function and time range selection is done from the front using snap-in rotary switches. The indicators for time elapsed, switching state, and operating voltage allow for constant monitoring of the operational status. Function description: after applying the operating voltage and the elapsed set time, the output relay pulls in and remains energized as long as the operating voltage is present.
Certifications: UL and CSA
EAN: 4017254159299.
