Eltako Impulse switch

Price in EUR including VAT
3Ratings
BrandMore from Eltako
Delivered between Sat, 11.10. and Wed, 15.10.
Only 3 pieces in stock at supplier
Free shipping starting at 30,–

Product details

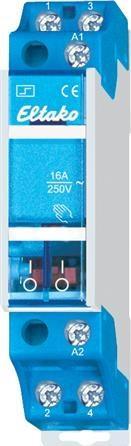

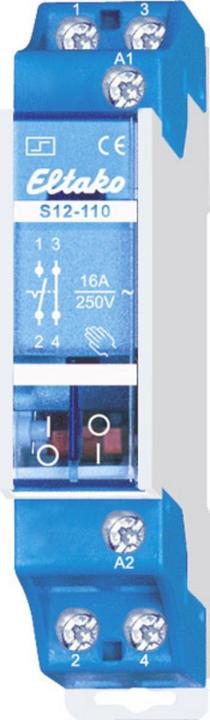

Eltako current impulse switch f.series S12-110-24V

Manufacturer: Eltako
Designation: Current impulse switch f.Reihe 1S1Ö 16A
Type: S12-110-24V
Function: Other
Mounting type: DIN-rail
Width in units: 1
Installation depth: 55 mm
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Control voltage 1: 24 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Rated breaking current: 16 A
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. fluorescent lamp load (duo-switch): 16 A
Fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 2300 W
Fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi: 0 A)
Switching current (cos phi: 0.6): 10 A
Suitable for manual operation: No

Electromechanical current impulse switch with manual operation and switch position indication. Duty cycle 100%. Control power requirement 5-6 W. Contact distance 3 mm. Distance control terminals/contact > 6 mm. Suitable for connection to SELV mains. EAN: 4010312100509.

Key specifications

input voltage
24 V
Scope of delivery
1 pc.
Output voltage
24 V
Output current type
AC
Electric current output
16 A
Relay type
Step switch
Item number
17823877

General information

Manufacturer
Eltako
Category
Relays
Manufacturer no.
21110020
Release date
10.12.2021
External links
Manufacturer's site (de)

Relay properties

Relay type
Step switch
input voltage
24 V
Output voltage
24 V
Electric current output
16 A
Output current type
AC
Switching function
Normally open
Number of openers
1 x
Number of closers
1 x
Number of switching cycles
1 x
Max. Switching capacity
2.30 kW

Smart home features

Smart Home
Not compatible
Radio frequency
50 Hz

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
55 mm
Width
55 mm
Height
55 mm
