Eltako Switching relay
Price in EUR including VAT
Free shipping starting at 30,–

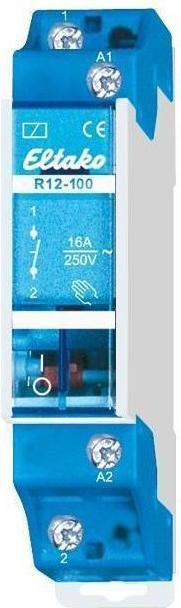

Eltako switching relay for series-EB R12-100-8V
Manufacturer: Eltako
Designation: Switching relay for series-EB
Type: R12-100-8V
Function: Other
Mounting type: DIN rail
Width in units of pitch: 1
Installation depth: 55 mm
Number of contacts as normally open: 1
Control voltage 1: 8 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Rated current: 16 A
Supply voltage: 230 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 2300 W
Fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi: 0 VA)
Switching current (cos phi: 0.6): 10 A
Eltako switching relay for series-EB R12-100-8V: More details
Electromechanical switching relay with manual override and switch position indicator. Duty cycle 100%. Control power consumption 1.9 W. Contact distance 3 mm. Test voltage contact/contact 2000 V and test voltage control terminals/contact 4000 V.
EAN: 4010312200414.
input voltage | 8 V |
Scope of delivery | Switching relay for series EB 1S 16A |
Output voltage | 8 V |
Output current type | AC |
Electric current output | 16 A |
Relay type | Switching relay |
Item number | 17823870 |
Manufacturer | Eltako |
Category | Relays |
Manufacturer no. | 22100010 |
Release date | 10.12.2021 |
External links |
Relay type | Switching relay |
input voltage | 8 V |
Output voltage | 8 V |
Electric current output | 16 A |
Output current type | AC |
Resistor | 16000 Ω (ohm) |
Switching function | Normally open |
Number of closers | 1 x |
Number of poles | 1 x |
Max. Switching capacity | 2.30 kW |
Manufacturer Type | R12-100-8v |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Switching relay for series EB 1S 16A |
Length | 18 mm |
Width | 18 mm |
Height | 55 mm |
Weight | 100 g |
Length | 9 cm |
Width | 6 cm |
Height | 2 cm |
Weight | 80 g |
