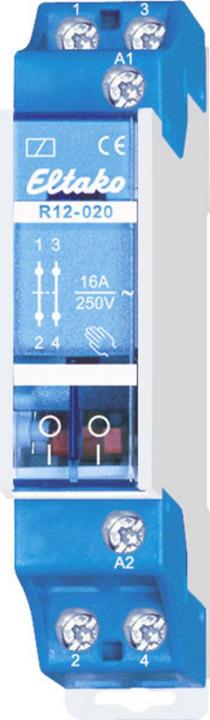

Eltako switching relay R12-020-230V
Manufacturer: Eltako
Designation: Switching relay 2Ö, 16A, 230V
Type: R12-020-230V
Function: Other
Mounting type: DIN-rail
Width in units: 1
Installation depth: 55 mm
Number of contacts as break contacts: 2
Control voltage 1: 230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Rated current: 16 A
Voltage type of supply voltage: AC
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. fluorescent lamp load (duo circuit): 2300 W
Fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 2300 W
Fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi: 0 VA)
Switching current (cos phi: 0.6): 10 A

Eltako switching relay R12-020-230V: More details
Electromechanical switching relay. 2 NC contacts (normally closed relay) with manual override and switch position indicator. Duty cycle 100%. Control power requirement 1.9 W. Contact spacing 3 mm. Test voltage contact/contact 2000 V and test voltage control terminals/contact 4000 V.
EAN: 4010312201572.
