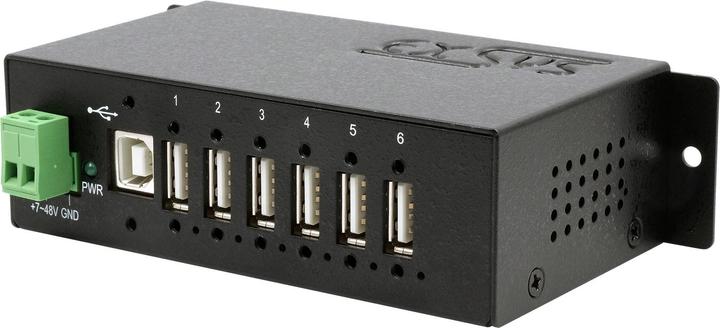

The EX-1596HMVS is a managed USB 2.0 hub designed to provide extensive and unique features for industrial applications. It offers immediate expansion with six screwable USB 2.0 ports and is compatible with all existing USB 2.0 and USB 1.1 devices.

Management Software:
The EX-1596HMVS comes with management software that allows you to turn the USB bus power on and off for each individual port or reset the entire USB hub to factory settings. The EX-1596HMVS has flash memory where the desired startup state can be stored. Upon the next power-up, the last settings will be used. Various utilities and management software tools for operating systems such as Windows, Intel x86-64, ARM-based Linux, and Mac are included. The utilities have been written to work with application software programmed in various languages such as C#, C++, VB, Python, or even PHP.

USB 2.0 Metal Hub with six downstream USB ports
Supports software utilities for Windows and Linux
15KV ESD surge protection for each output
Power supply from +7V to +48V DC via terminal block

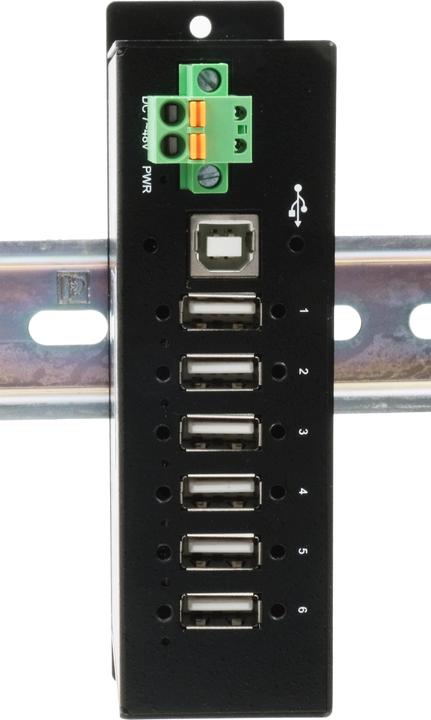

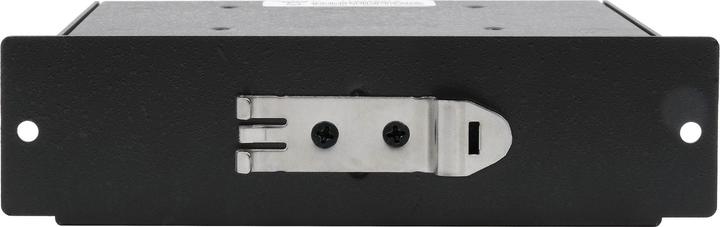

Easy installation with integrated DIN rail mounting
Compact industrial design
Automatic detection of data transfer rate for connected peripherals
500mA maximum current on all 6 ports with self-power (power supply)
Automatic detection of input polarity at the power terminal block
Robust metal housing

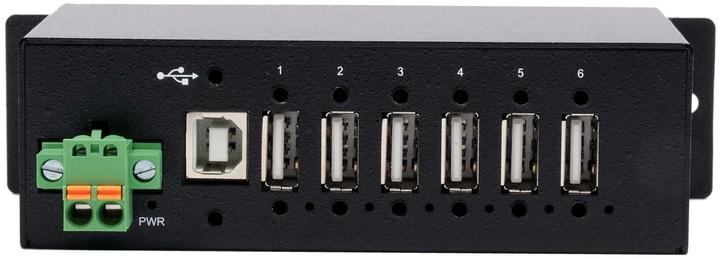

1x LED voltage indicator and 6x LED active indicators
Chipset: Genesys GL852GT

Internal jumper for individual power control:

• ENA = Bus power operation possible
• DIS = Operation only with power supply possible (self-power)

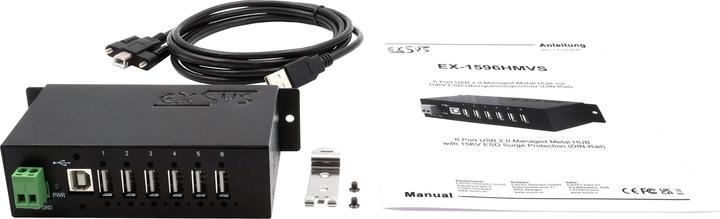

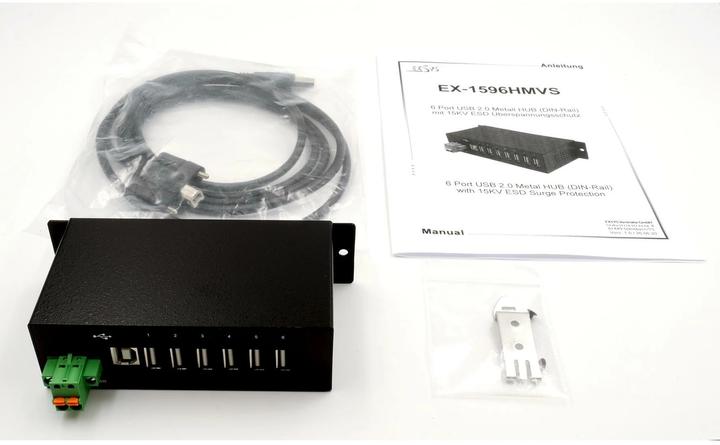

Package contents:
EX-1596HMVS, USB 2.0 cable, DIN rail kit, driver CD, manual.
