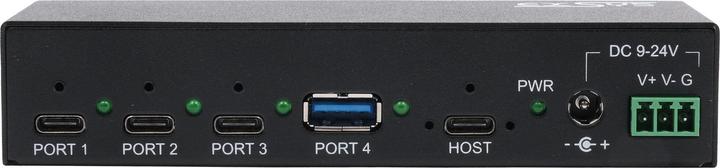

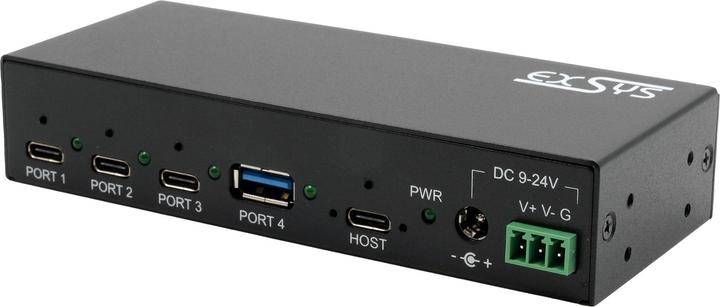

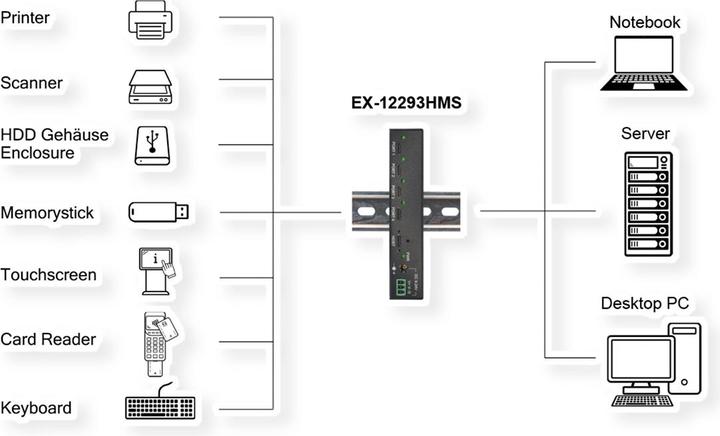

The robust, industrial-grade EX-12293HMS is a USB 3.2 Gen 2x1 metal hub for up to four devices, which can be mounted on a wall or a DIN rail. It features one USB-A and three USB-C downstream ports, ensuring secure data transfer and excellent performance of up to 10 Gbit/s (SuperSpeed USB 10 Gbps). Additionally, the EX-12293HMS is equipped with a 15 KV ESD surge protection. The external power supply can provide up to 3 A at each USB-C port and 1.5 A at the USB-A port, allowing for hassle-free charging of iPhones, iPads, smartphones, and tablets. Power can be supplied via the included plug-in power supply or an optionally available DIN rail power supply (Self-Power).

USB 3.2 Gen 2x1 metal hub with 3x USB-C and 1x USB-A downstream
15 KV ESD surge protection for each output
Power supply +9 V to +24 V DC via terminal block or DC socket
Redundant power supply when using both terminal block and DC socket
Up to 3 A per USB-C port and 1.5 A at the USB-A port, total output power max. 52 W
Automatic detection of data transfer rate for connected peripherals

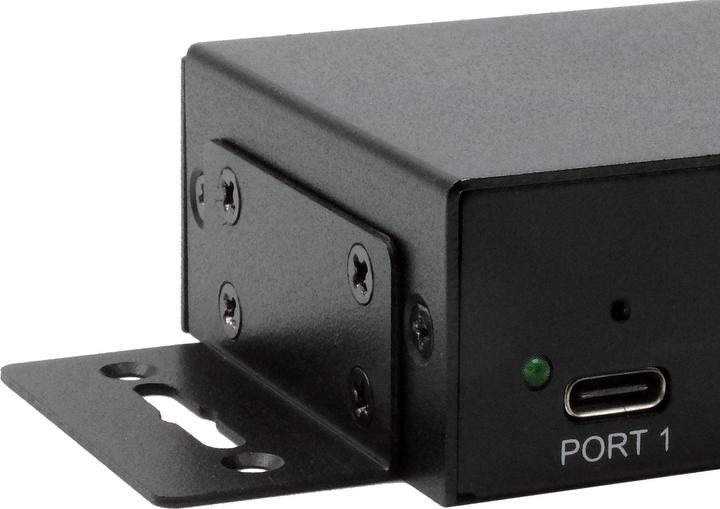

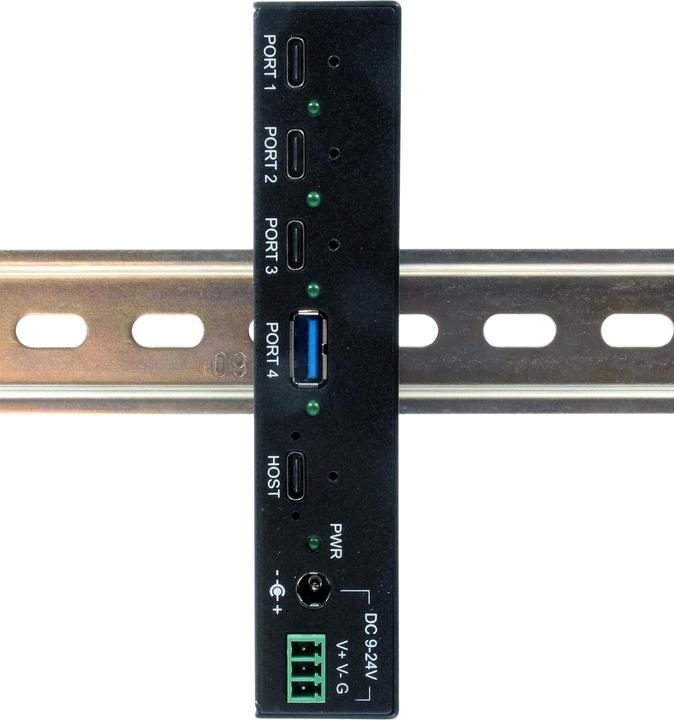

Includes wall mounting bracket and DIN rail kit
Compact industrial design
Robust metal housing
LED indicators for power and connection status
Chipset: VIA VL822

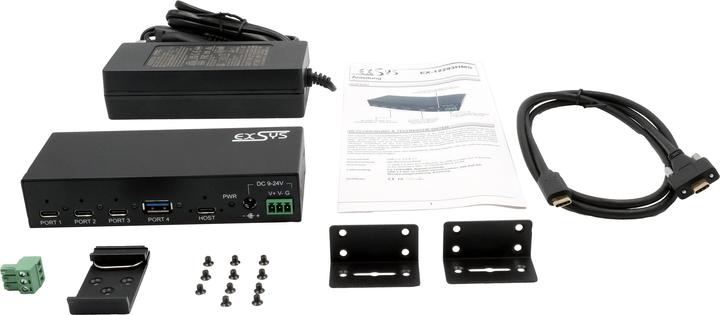

Delivery includes:
EX-12293HMS, power supply (12 V/5 A), USB 3.2 Gen 2x1 screwable cable 1.0 m, DIN rail kit, wall mounting kit, manual.
