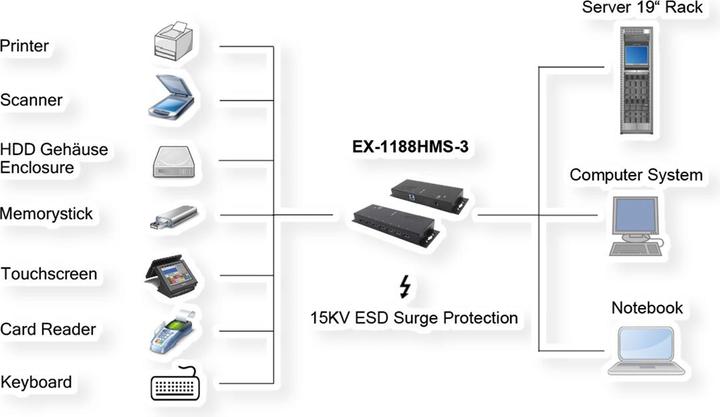

The EX-1188HMS-3 provides 7 USB 3.2 Gen 1 (formerly known as USB 3.0) downstream ports with 15 kV ESD overvoltage protection for each output. It is possible to connect up to seven external USB peripherals to a USB 3.2 Gen 1 port from a notebook, desktop computer, or server in a 19" rack. It can be used in automation, industry, and office applications. Thanks to its special housing, the EX-1188HMS-3 can be mounted on the wall, under a table, or in a 19" cabinet (optionally with EX-6099).

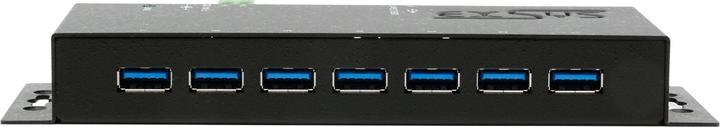

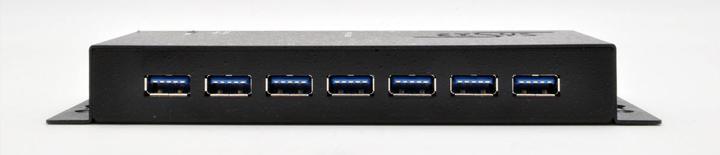

USB 3.2 Gen 1 hub with seven downstream ports
15 kV ESD overvoltage protection for each output

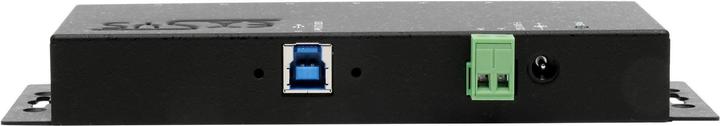

Power supply +7V to +24V DC via terminal block or DC socket
Power supply optionally also from USB bus +5V (bus-powered)
Automatic detection of data transfer rate for connected peripherals
Metal housing for wall, table, or optionally on mounting rail (EX-6099)
900 mA power on all 4 ports
Robust metal housing
1x LED voltage indicator

Two jumpers for individual control of operating mode (data and power):
Bus Power Jumper:
ENA = Bus power operation possible
DIS = Operation only possible with power supply (self-powered)
Host Control Jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is turned on

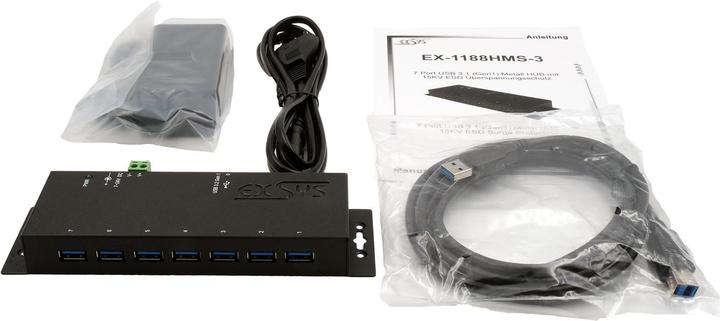

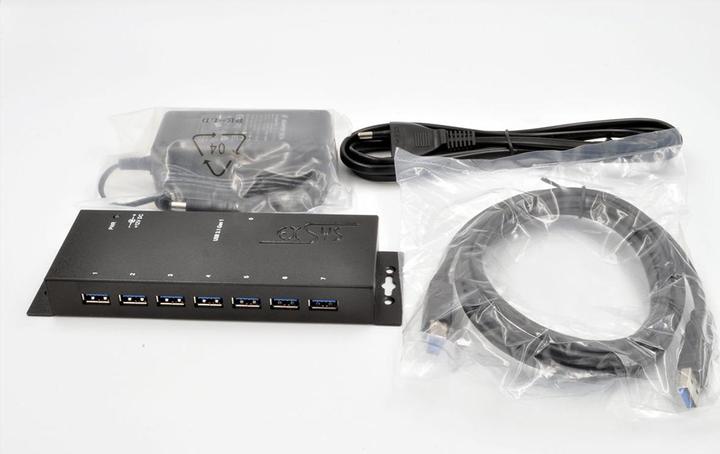

Delivery includes:
EX-1188HMS-3, USB 3.2 Gen 1 cable 1.5 m, power supply 12V/3A, manual.
