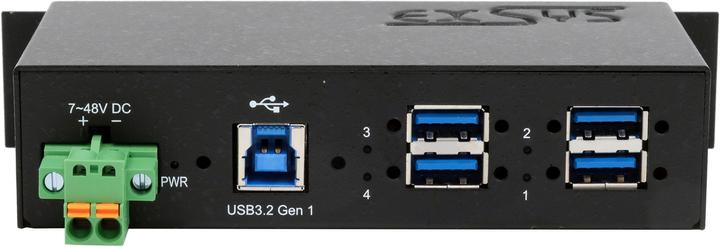

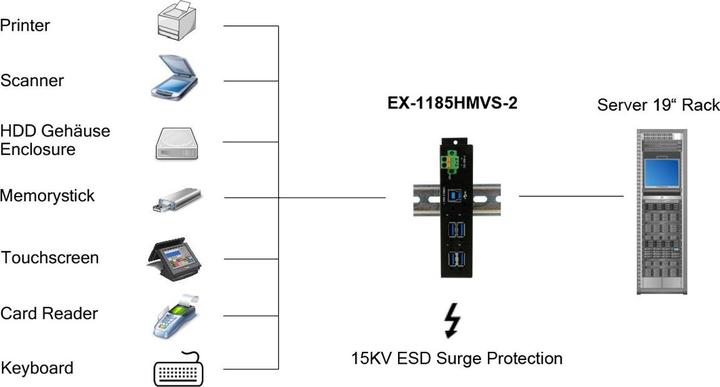

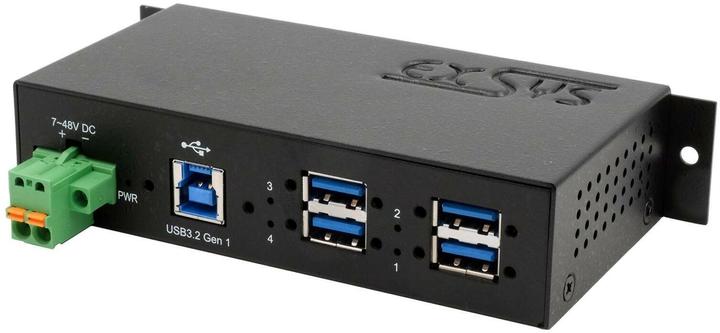

The robust, industrial-grade EX-1185HMVS-2 USB hub features four screwable USB 3.2 Gen 1 (formerly USB 3.0) ports and 15KV ESD surge protection. It can be installed on a wall or on a mounting rail. The hub connects to a computer or server using the included USB 3.2 Gen 1 cable. The EX-1185HMVS-2 supports data transfer rates of up to 5 Gbit/s and is backward compatible with USB 1.1. It can be powered via USB bus power (7-48V) or through a two-wire terminal block.

• USB 3.2 Gen 1 metal hub with four downstream ports
• 15KV ESD surge protection for each port
• Power supply 7V to 48V DC via terminal block
• Optional power supply from USB bus 5V (bus power)

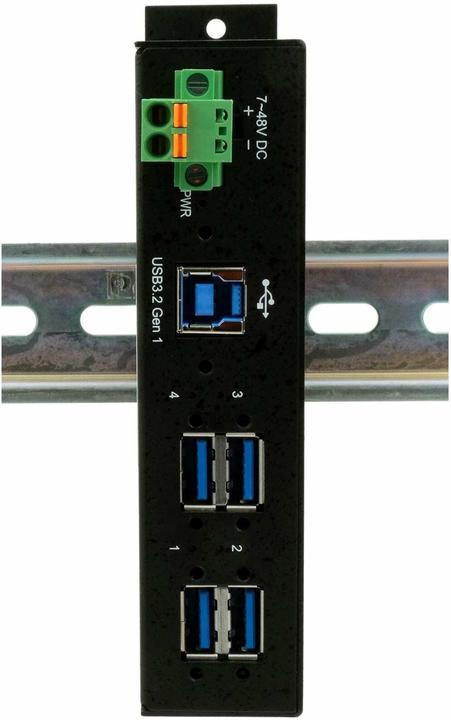

• Easy installation with integrated DIN rail mounting bracket
• Automatic detection of data transfer rates for connected peripherals
• 900mA power on all 4 ports
• Automatic detection of input polarity at the power terminal block
• Compact industrial design
• Robust metal housing
• LED voltage indicator
• Chipset: Genesys GL3523

Internal jumper for individual power control:

• ENA = Bus power operation possible
• DIS = Operation only with power supply possible (self-powered)

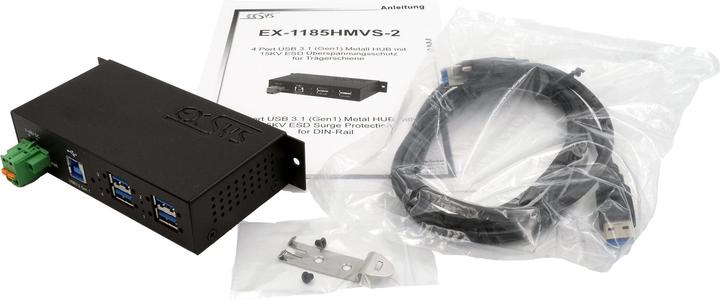

Package contents:
EX-1185HMVS-2, USB 3.2 Gen 1 cable, DIN rail kit, manual.
