Enclosure material: Polycarbonate
External dimensions: 130 x 80 x 35 mm
External length: 130 mm
External width: 80 mm
External height: 35 mm
IP protection class: IP66, IP67
Color: Gray
Cover color: Gray
Series: MNX
Shielded: No

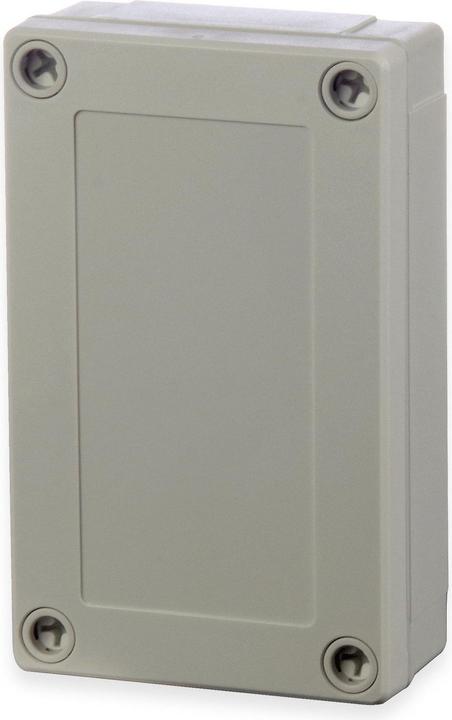

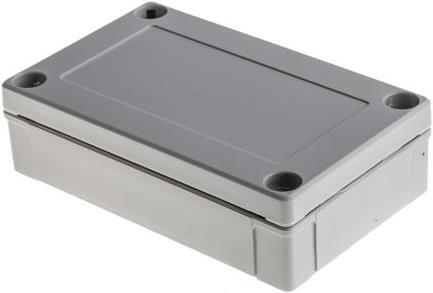

NEMA 1, 4, 4X, 6. Fibox MNX enclosures. The enclosures of the MNX series are the perfect choice for electronic systems and components. These light gray (RAL 7035) polycarbonate enclosures offer IP66 and IP67 protection ratings, allowing you to work safely and ensuring that the enclosures can be reliably used under challenging operating conditions. The MNX series enclosures are available in various sizes to meet your everyday applications.

Features and benefits:

• Light gray surface
• Electrical insulation
• Protection class IP66/67 and IK08
• Temperature: –40 °C to +80 °C
• Single door
• Installation position: upright on a wall, pole, or frame
• Flammability class: UL 746C 5"
• UV resistance: UL508

Protection against ingress according to IP. The IP protection class classifies the level of protection against the ingress of solid objects (including body parts such as hands and fingers), dust, accidental contact, and water in electrical enclosures.

• IP66: Dust-tight and waterproof
• IP67: Immersed in water under defined conditions for pressure and time (up to 1 m immersion depth).

IK impact protection. The IK rating indicates the level of protection for enclosures for electrical installations against mechanical impacts.

• IK08: Protected against impacts of up to 5 joules. Corresponds to the impact of a 1.7 kg mass dropped from a height of 300 mm onto an impact surface.
