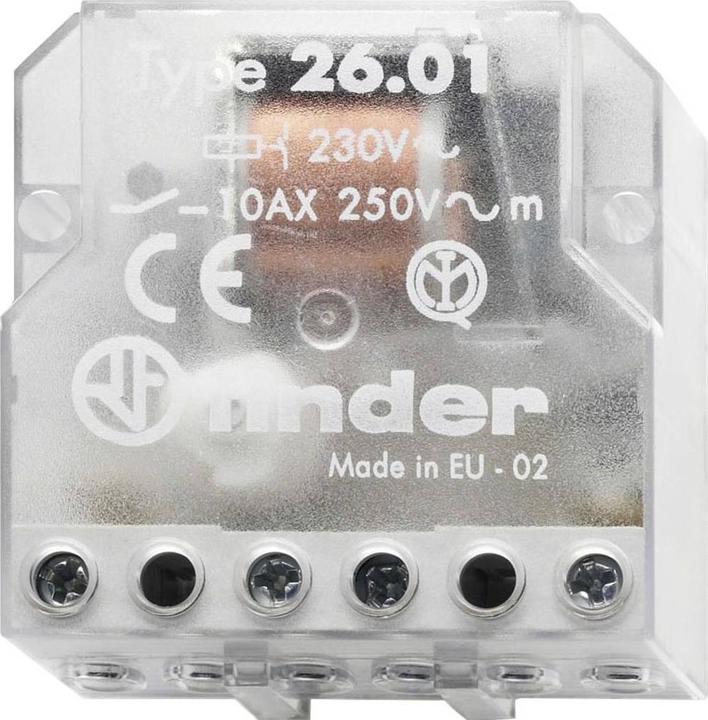

Finder impulse switch 26.01.8.048.0000

Manufacturer: Finder
Designation: Impulse switch 1S, 10A
Type: 26.01.8.048.0000
Function: Mechanical switch
Mounting type: Flush-mounted
Installation depth: 22 mm
Number of contacts as NO contacts: 1
Control voltage: 48 V
Control voltage type: AC
Frequency of control voltage: 50 Hz
Rated switching current: 10 A
Supply voltage: 48 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 800 W
Max. fluorescent lamp load: 400 VA
Max. fluorescent lamp load (duo circuit): 400 VA
Max. fluorescent lamp load (parallel compensated): 360 VA
Max. switching current (cos phi 0.6): 5 A
Suitable for manual operation: No

Impulse switch for mounting in flush-mounted box or on chassis, 1 NO contact for 10 A / 250 V AC, max. switching capacity at 230 V AC: AC1 2500 VA, AC15 500 VA, incandescent and halogen lamps 800 W, fluorescent lamps compensated 360 W, fluorescent lamps uncompensated 400 W, energy-saving lamps 200 W, LED (230 V AC) 200 W, LV halogen lamps or LED with electronic ballast 200 W, LV halogen lamps or LED with electronic ballast 400 W, switching sequence: off/on, contact material AgNi, coil data: 48 V AC, 4.5 VA, 290 Ohm, relay protection class: IP 20.
