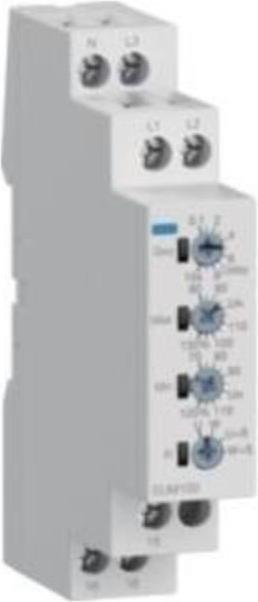

The Hager EUM100 is a highly advanced installation relay designed for monitoring voltages in single-phase and three-phase networks. It provides a reliable solution for monitoring under- and overvoltages as well as phase monitoring. With a compact design and a width of just 17.5 mm, it is ideal for installation in control cabinets. The relay requires an external power supply and is designed for voltages ranging from 230 to 400 V at 50 and 60 Hz. It allows for the adjustment of the reset delay time between 0.1 and 10 seconds, enabling flexible handling in various applications. The EUM100 is thus a valuable component for the safety and efficiency of electrical systems.
input voltage | 520 V |
Scope of delivery | 1 - STK |
Output voltage | 250 V |
Output current type | AC |
Electric current output | 5 A |
Relay type | Installation relay |
Item number | 33558427 |
Relay type | Installation relay |
input voltage | 520 V |
Output voltage | 250 V |
Electric current output | 5 A |
Output current type | AC |
Switching function | Changer |
Number of closers | 1 x |
Number of poles | 1 x |
Max. Switching capacity | 0.25 kW |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | Austria |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 - STK |
Length | 65 mm |
Width | 17.50 mm |
Height | 87 mm |
