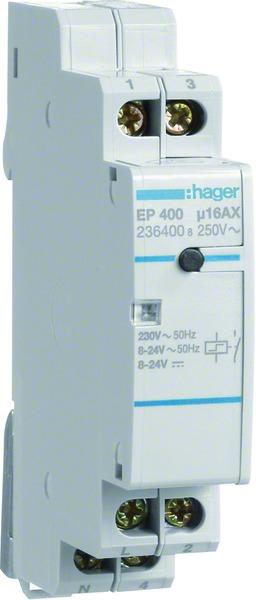

Hager Remote Switch EP400

Manufacturer: Hager
Designation: Remote Switch 1S 230V
Type: EP400
Function: electronic
Mounting type: DIN rail
Width in modular units: 17.5
Installation depth: 60 mm
Number of contacts as switches: 1
Control voltage 1: 8..230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50..60 Hz
Control voltage 2: 8..24 V
Control voltage type 2: AC/DC
Frequency of control voltage 2: 50..60 Hz
Rated switching current: 16 A
Supply voltage: 250 V
Type of supply voltage: AC
Max. incandescent lamp load: 1500 W
Max. fluorescent lamp load: 1200 VA
Max. fluorescent lamp load (Duo circuit): 600 VA
Max. fluorescent lamp load (parallel compensated): 300 VA
Max. switching current (cos phi 0.6): 16 A
Suitable for manual operation: yes

Hager Remote Switch EP400: additional details
Electronic remote switch 1S 230V and 8 to 24V AC/DC. Electronic remote switch according to DIN EN 60669-2-1 (VDE 0632-2-1) and DIN EN 60669-2-2 (VDE 0632-2-2) for impulse control of lighting circuits up to 16 A. The 230 V input and output voltages are bridged within the device. For devices with different control voltages, there is galvanic isolation between low and extra-low voltage.
