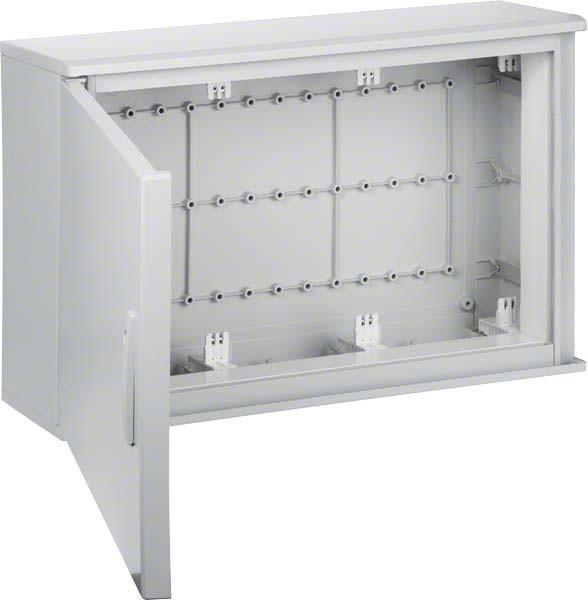

Hager Wall Cabinet FL33S

Manufacturer: Hager
Designation: Wall cabinet 550x850x300, IP65
Type: FL33S
Mounting type: Surface-mounted
Cover type: Door
Cover design: Closed
Door type: Single
Transparent cover/door: No
With lock: Yes
Rated current (In): 630 A
Height: 550 mm
Width: 850 mm
Depth: 300 mm
Installation depth: 300 mm
Internal depth: 150 mm
Material thickness of housing: 2 mm
Material thickness of door/cover: 2 mm
Color: Gray
RAL number: 7035
Number of modules: 108
Number of rows: 3
Width in division units: 36
Mounting option: No
Material of housing: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: Yes
Protection class (IP): IP65
Protection class: II
Impact resistance: IK10
Function preservation: None
Cover with pressure relief: No

Hager Wall Cabinet FL33S: Additional Details
Universal wall cabinet, IP65, SK II, 550 x 850 x 300 mm, Polyester. Wall-mounted cabinet for outdoor or indoor installation with VDE certification (manufacturing supervision) according to DIN EN 61439-1/-3 and dimensional standard DIN 43870, designed for surface mounting. For the construction of a low-voltage distribution up to 630 A, 3AC 690 V 50 Hz. Protection class IP65, protection class II, air and creepage distances according to IEC 60664-1. Composed of a cabinet with a door made of fiberglass-reinforced polyester, UV-resistant, door seal foamed all around, temperature-resistant and oil-resistant. Note: Door lock can be replaced with other locks. Additional requirements must be observed when installing outdoors.
