Hager HAG US53A4 guard covers universalN
Terminal stripsProduct details

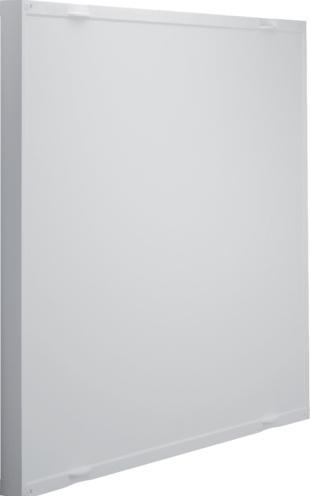

The HAG US53A4 touch protection covers universN from Hager are specifically designed for use in low-voltage distributions. These covers provide effective protection against unwanted contact and are suitable for a rated voltage of 3AC 690 V at 50 Hz. With a robust construction reinforced by a gas internal pressure process, they ensure high safety and durability. The covers are sealable and feature four quick-release bolts that allow for easy handling and installation. They are intended as replacement items and can be retrofitted in existing low-voltage distributions up to 1600A. The covers comply with the dimensional standards according to DIN 43870 and are certified with a VDE design approval according to DIN EN 61439-1/-2/-3, highlighting their quality and safety.
- Sealable touch protection covers for enhanced safety
- Suitable for low-voltage distributions up to 1600A
- Reinforced by gas internal pressure process for additional stability
- Easy installation thanks to four quick-release bolts
- VDE design approval according to DIN EN 61439-1/-2/-3.
Electrical engineering accessory type | Terminal strips |
Item number | 32124454 |
Manufacturer | Hager |
Category | Electronics supplies + Casing |
Manufacturer no. | US53A4 |
Release date | 16.11.2022 |
Colour | White |
Compatible hardware | Various |
Electrical engineering accessory type | Terminal strips |
Manufacturer Type | US53A4 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Contact hazard protection cover universN 750x750mm closed. Spare part, Dimension standard: DIN 43870., For retrofitting in a low-voltage distribution board up to 1600A, Rated voltage 3AC 690 V / 50Hz. Lead-sealable contact hazard protection covers as standard, Reinforced using the internal gas pressure method with four quick-release bolts each. VDE mark approval in accordance with DIN EN 61439-1/-2/-3 (VDE 0660 Part 600-1/-2/-3) |
Length | 110 mm |
Width | 750 mm |
Height | 750 mm |
