Hager Assembly Package ZY2505LM

Manufacturer: Hager
Description: Assembly package for LM applications
Type: ZY2505LM
Design: Plug-in current transformer
Primary rated current: 250 A
Secondary rated current: 5 A
Secondary rated power: 1 VA
Accuracy class: 1
Overcurrent limiting factor: FS 5
Calibrated: no
With touch protection: yes
Height of opening: 20 mm
Opening width: 29.5 mm
Snap fastening: yes
With copper rail: no
Number of primary inputs: 1

Hager Assembly Package ZY2505LM: additional details

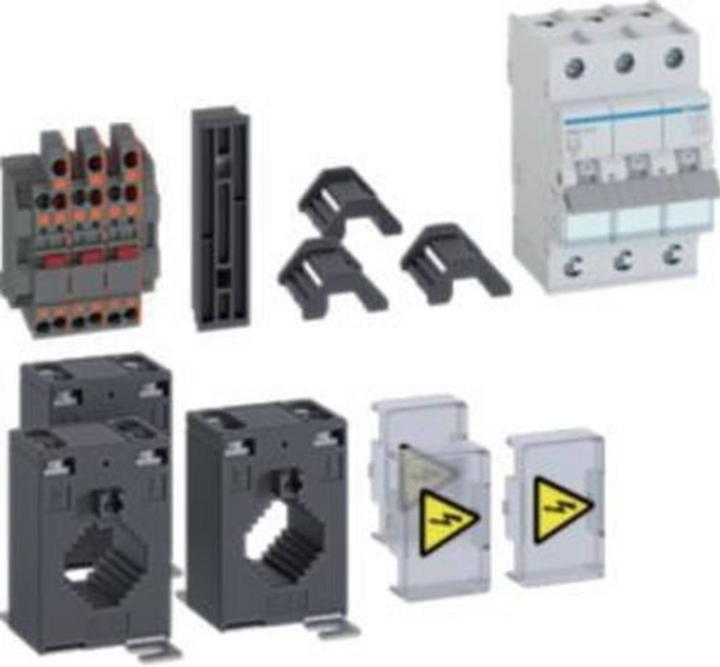

Assembly package for LM applications, 250/5A transformer, 3-pole circuit breaker B 10A, transformer class. Assembly packages for load management applications to implement dynamic load management. Consisting of 3 through current transformers BG 113 for busbar systems, 3 adapter pieces for mounting on 12x5 mm and 12x10 mm busbars, a bag with 3 transparent flaps with safety sticker, circuit breaker (3-pole, 6 kA, B-characteristic, rated current 10 A, 3 modules, QuickConnect) and a terminal block for structured wiring of the necessary load management components in the space for the load manager.
