Tehalit Connection Set GMSET019016

Manufacturer: Tehalit
Description: HDMI front connection set
Type: GMSET019016
Design: Set
Print/Labeling: none
Scannable Symbol/Barrier-free: no
Usage: other
Suitable for bus system switch coupling: no
Mounting type: screw fastening
Control window/Light outlet: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Antibacterial treatment: no
Color: white
RAL number (similar): 9016
With labeling field: yes
With interchangeable lens/symbol: no
Suitable for protection class (IP): IP00
Impact resistance: IK07
Width: 103 mm
Height: 80 mm
Depth: 50 mm

Tehalit Connection Set GMSET019016: additional details

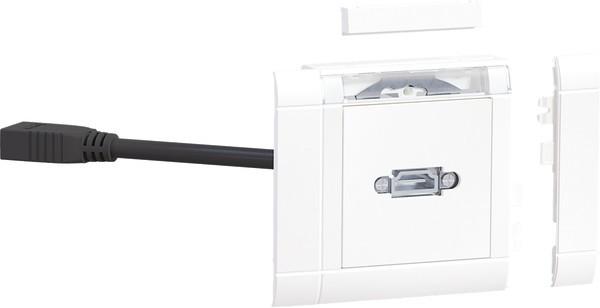

Multimedia connection set for HDMI front terminal in traffic white. Multimedia connection set for floor channels with a top width of 80 mm. Consists of a mounting frame Multimedia Type 301, HDMI 1.4 connection cable, 0.2 m cable whip, socket/socket design device box for accommodating communication connection sockets, for floor channel with front terminal device mounting. Central plate for tool-free mounting on mounting frame Multimedia Type 301. Frame cover for floor channel, cut-edge matching to the channel top. Integrated labeling field for mounting on the device box, compatible with 9 mm labeling tapes. Modularly stackable with a combination spacing of 71 mm.
