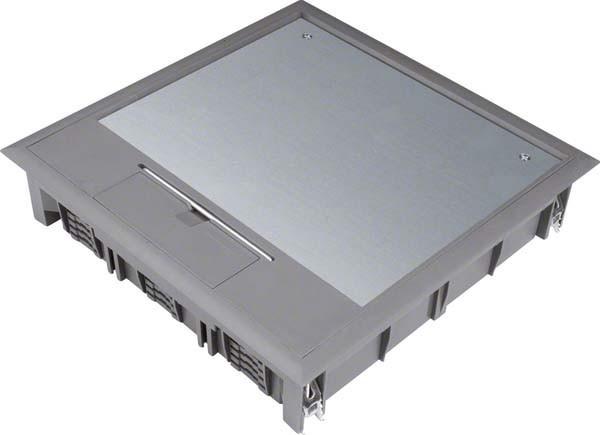

Tehalit Supply Unit VQ1205 egr

Manufacturer: Tehalit
Description: Supply unit with universal mounting set
Type: VQ1205 egr
Cover design: square
Number of entries: 1
Number of device sockets: 3
Number of Schuko sockets: 12
With cable outlet in the cover: yes
Lockable cover: yes
Material of the housing: plastic
Material of the cover: plastic
Surface protection of the cover: other
Surface treatment of the cover: other
Protection class (IP): IP20
With floor covering recess: yes
Depth of floor covering recess: 5 mm
Floor covering protection frame: yes
Color: gray
RAL number: 7011
Suitable for indoor use: yes
Suitable for outdoor use: no
Suitable for underfloor channel: yes
Suitable for hollow floor installation: yes
Suitable for raised floor installation: yes
Suitable for concrete installation: yes
Suitable for floors in computer rooms: yes
Suitable for wet cleaning: no

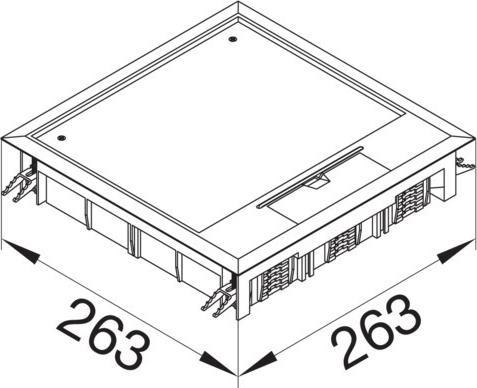

External width: 263 mm
External length: 263 mm
Installation length: 244 mm
Installation width: 244 mm
Min. installation depth: 77 mm

Supply unit Q12 244x244 mm for 5 mm floor covering made of polyamide iron gray. Supply unit according to DIN EN 50085-1 and DIN EN 50085-2-2, including universal mounting set, with floor covering protection frame, device sockets can be lowered stepwise up to 18 mm, with connection option for flat chain. EAN: 4012002244999.
