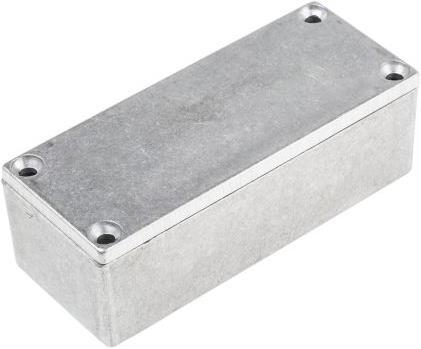

Housing material: Die-cast aluminum
External dimensions: 92 x 38 x 31 mm
External length: 92 mm
External width: 38 mm
External height: 31 mm
IP protection class: IP54
Color: Natural
Cover color: Unpainted
Series: Shallow Lid - Thin Wall
Number of knockouts: 0
Shielded: Yes

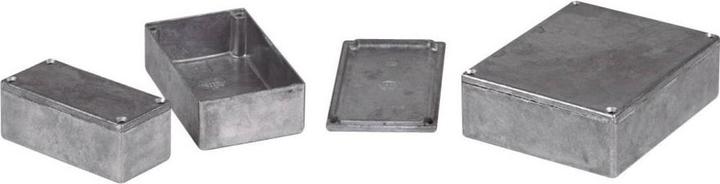

Thin-walled die-cast housing, IP54. The Hammond 11451 series, also known as the Hammond Eddystone series, is made of untreated aluminum. Durable and impact-resistant, with an IP54 rating that guarantees resistance to splashes from all directions.

Features and benefits:
Robust housing for electronic devices made from a die-cast aluminum alloy (tough yet easy to machine). Aluminum alloy according to BS1490, LM2M – untreated. Construction with overlapping joints provides protection against dust and splashes while also improving EMC performance. Covers are secured with countersunk screws M3.5 x 12 (POZIDRIV® No. 2 head). Countersunk holes in the cover. Complies with EN60950. Low angle of the side wall (max. 2°) for easy PCB mounting.

Frequently asked questions:
What does IP protection class mean? The IP protection class is used to determine the effectiveness of the seal of electrical enclosures against the ingress of foreign bodies (tools, dirt, etc.) and moisture.

What is included in the delivery? Housing with cover and 4 cover screws.
