Housing material: Die-cast aluminum
Dimensions outside: 140 x 102 x 77 mm
Length outside: 140 mm
Width outside: 102 mm
Height outside: 77 mm
IP protection class: IP54
Color: Black
Series: 1550

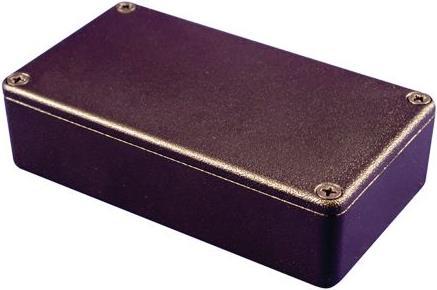

Dimensions do not include the lid (add 4 mm for the lid). Hammond 1550 Series die-cast aluminum enclosures are constructed of a rugged die-cast aluminum alloy and offer enhanced EMI/RFI shielding. The 1550 Series features an overlapping butt design that protects against dust and water spray intrusion.

Features and benefits:

• Rugged electronic equipment enclosure made of die-cast aluminum alloy (tough yet easy to machine)
• Construction with overlapping butts to protect against dust and water splash intrusion
• Improved EMI/RFI shielding
• Unpainted with vibra-coating for a smooth surface without sharp edges
• Painted black with durable polyester powder paint for a long-lasting finish, even after machining
• Black screws included for an attractive appearance after assembly
• Four M3.5 x 0.6 x 12 mm stainless steel, Philips-head machine screws secure cover in factory tapped holes
• Conforms to IP54
• No internal ribs for easy connector mounting without interference or additional routing
• Low sidewall slope (2° max.) for easy P.C. board mounting

Frequently asked questions:
What does IP mean?
The IP rating is used to determine the effectiveness of the sealing of electrical enclosures against the ingress of foreign objects (tools, dirt, etc.) and moisture.

What is included in the package?
Enclosure with cover and color-matched screws.
