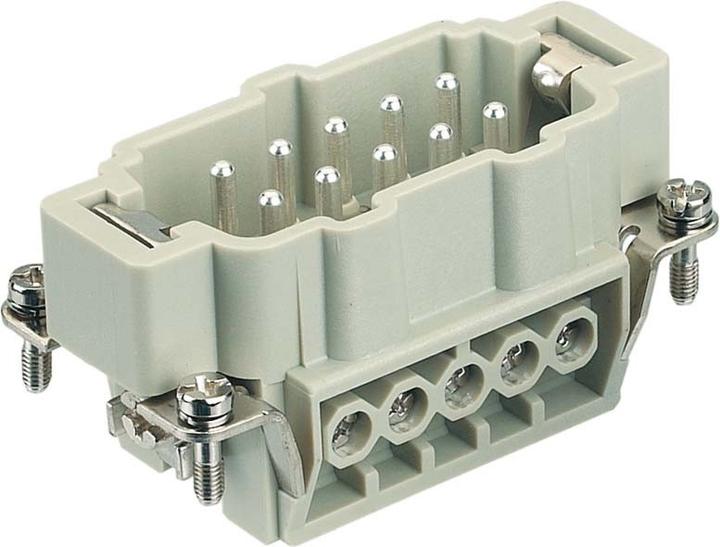

The HAN E connector from Harting is a highly developed screw connection designed for a wide range of applications in electronics. With a robust design and high performance, this 10-pole connector is ideal for use in demanding environments. The housing is made of thermoplastic, providing excellent resistance to high temperatures of up to 125 °C and low temperatures down to -40 °C. The connector supports a maximum rated current of 16 A and a rated voltage of 500 V, making it a reliable choice for various electrical applications. The silver contact coating ensures improved conductivity and durability. The connection is made via a screw terminal, which guarantees a secure connection and is suitable for conductor cross-sections from 0.75 to 2.5 mm². With a minimum of 500 mating cycles, this connector is designed for long-term use.

• Made of thermoplastic for high temperature resistance
• Maximum rated current of 16 A and rated voltage of 500 V
• Screw connection for secure and reliable connections
• Conductor cross-section from 0.75 to 2.5 mm² possible
• Silver coating of contacts for improved conductivity.
