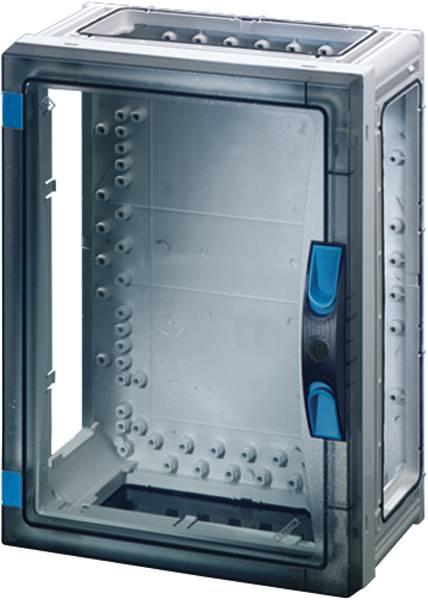

Hensel ENYSTAR Empty Enclosure FP 0240

Manufacturer: Hensel
Designation: ENYSTAR Empty Enclosure
Dimensions: 216 x 306 x 136 mm
Type: FP 0240
Mounting Type: Surface-mounted
Type of Cover: Door
Cover Design: Closed
Type of Door: Single
Transparent Cover/Door: Yes
With Lock: No
Height: 360 mm
Width: 270 mm
Depth: 186 mm
Installation Depth: 136 mm
Internal Depth: 136 mm
Material Thickness of Enclosure: 3 mm
Material Thickness of Door/Cover: 3 mm
RAL Number: 7035
Number of Modules: 1
Number of Rows: 1
Number of Openings for Flange Plates: 4
Mounting Option: Yes
Material of Enclosure: Plastic
Surface Protection: Untreated
With Mounting Plate: No
Suitable for Outdoor Use: Yes
Suitable for Lightning Protection: No
Protection Class (IP): IP65
Protection Class: II
Impact Resistance: IK08
Function Maintenance: None

The Hensel ENYSTAR Empty Enclosure FP 0240 is a door enclosure designed for the construction of installation distribution boards up to 250 A, suitable for operation by laypersons according to IEC 61439-3. It features open enclosure walls for combination or as a standalone enclosure with closure plates. Made from high-quality polycarbonate, it is protection-insulated. The connection of the enclosures is quick through connectors and integrated seals. Large wall penetrations allow for the electrical connection of the enclosures to one another. Cable entry is via flanges. Wall mounting can be done directly on the enclosure, via external tabs, or with mounting rails. The empty enclosure has a transparent door and a sealable door lock with manual operation. It is suitable for the installation of devices on a mounting plate or DIN rail, with installation dimensions of W 216 x H 306 x D 140 mm. The maximum installation depth with the mounting plate installed is 136 mm, and with the mounting rail installed, it is 125 mm.
