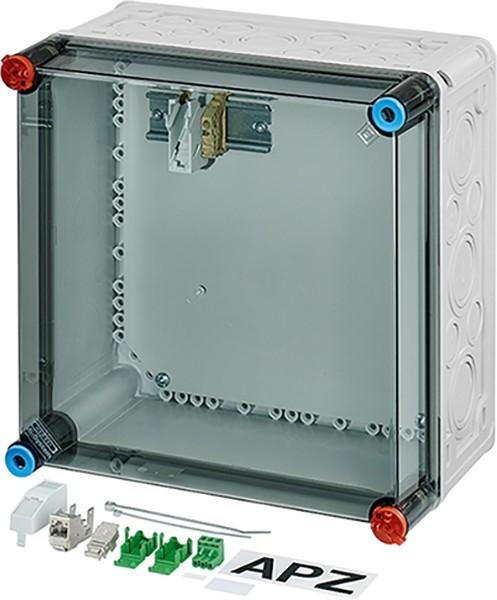

Hensel Mi-APZ Enclosure Mi 2279

Manufacturer: Hensel
Designation: Mi-APZ Enclosure 300x300x170mm
Type: Mi 2279
Mounting Type: Surface-mounted
Cover Type: Lid
Lid Design: Closed
Door Type: None
Transparent Lid/Door: Yes
With Lock: No
Rated Current (In): 16 A
Height: 300 mm
Width: 300 mm
Depth: 170 mm
Installation Depth: 146 mm
Internal Depth: 146 mm
Material Thickness of Enclosure: 3 mm
Material Thickness of Door/Lid: 3 mm
RAL Number: 7035
Number of Modules: 1
Number of Rows: 1
Width in Division Units: 6
Number of Openings for Flange Plates: 4
Mounting Option: Yes
Number of Cable Entries: 40
Material of Enclosure: Plastic
Surface Protection: Untreated
With Mounting Plate: Yes
Suitable for Outdoor Use: No
Suitable for Lightning Protection: No
Protection Class (IP): IP65
Protection Class: II
Impact Resistance: IK08
Function Maintenance: None

Hensel Mi-APZ Enclosure Mi 2279: Additional Details
Enclosure for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. Made of high-quality, protection-insulated polycarbonate. Wall penetrations with large openings for the electrical connection of enclosures to each other. Cable entry on all enclosure walls via metric pre-formed openings or mounting flanges. Enclosure for wall mounting also via external tabs or with mounting rails. Enclosure for integration of a router from the metering operator. Installation of the router on a mounting plate of 259 x 259 mm is possible.
