IFM EVT248 Connecting cable - cable - 0.3 m
Price in EUR including VAT
free shipping

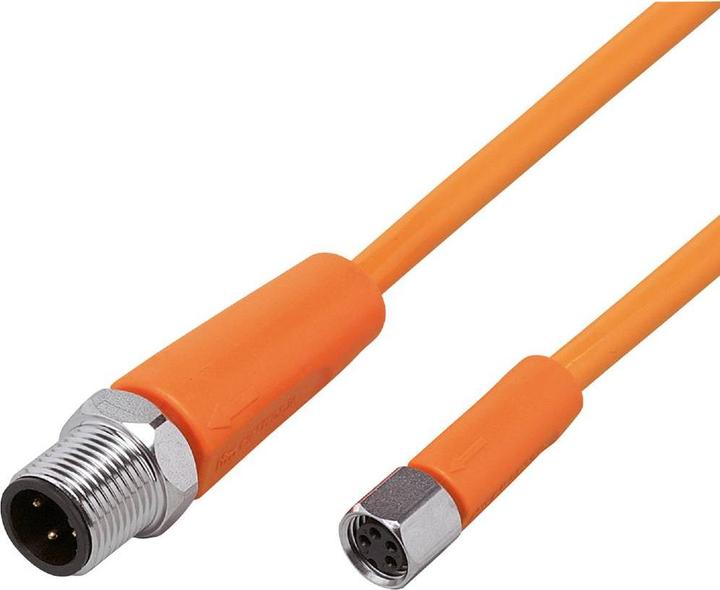

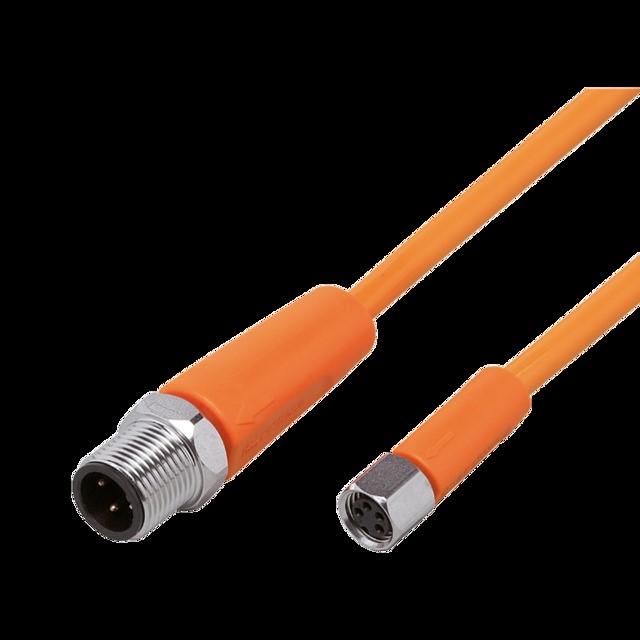

Ifm Electronic Connecting cable EVT248 Manufacturer :Ifm Electronic Designation :Connecting cable Type :EVT248 Number of poles :4 Type of electrical connection, field side :M12 Type of plug contact, field side :male (plug) Arrangement of cable feed, field side :straight Type of electrical connection, housing side :M8 Type of plug-in contact, on the housing side :female Arrangement of the cable feed, on the housing side :straight Cable length :0.3 m Material of the cable sheath :Polyvinyl chloride (PVC) Halogen-free :no Colour of the cable sheath :orange With LED display :no Shielded :no Cable type :multicore Perm. Perm. cable outer temperature after assembly without vibration :-25..80 °C Perm. cable outer temperature during assembly/handling :-25..80 °C Rated current In :3 A Rated voltage :50 V Protection class (IP) :other Ifm Electronic connecting cable EVT248: further details Connection technology, connecting cable, straight/straight, M12, 4-pin, 4-wire, AC/DC, operating voltage: 50 V AC, 60 V DC, M12 plug / M8 coupling, 0.3 m, PVC cable, 4 x 0.34 mm², silicone-free , Contacts gold-plated , For hygienic and wet areas in the food industry, Housing material: housing: PVC orange Seal: EPDM, Union nut material: V4A (1.4404) , EAN: 4021179260695.
cable type | Connection cable |
Plug type | M12 |
Cable + connector type | Cable with plug |
Cable length | 0.30 m |
Item number | 31964944 |
Manufacturer | IFM |
Category | Cables + Plugs |
Manufacturer no. | EVT248 |
Release date | 17.10.2022 |
Colour | Orange |
Material group | Plastic |
Material | PVC |
Cable + connector type | Cable with plug |
cable type | Connection cable |
Plug type | M12 |
Compatible hardware | Various |
Max. temperature | 80 °C |
Min. temperature | -25 °C |
mounting type | Free connection |
Cable length | 0.30 m |
Manufacturer Type | EVT248 |
Connectors Design | Plug, straight, socket, straight |
Number of cores | 4 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | M12 plug, M8 coupling |
Length | 49.50 cm |
Width | 15.50 cm |
Height | 4.95 cm |
