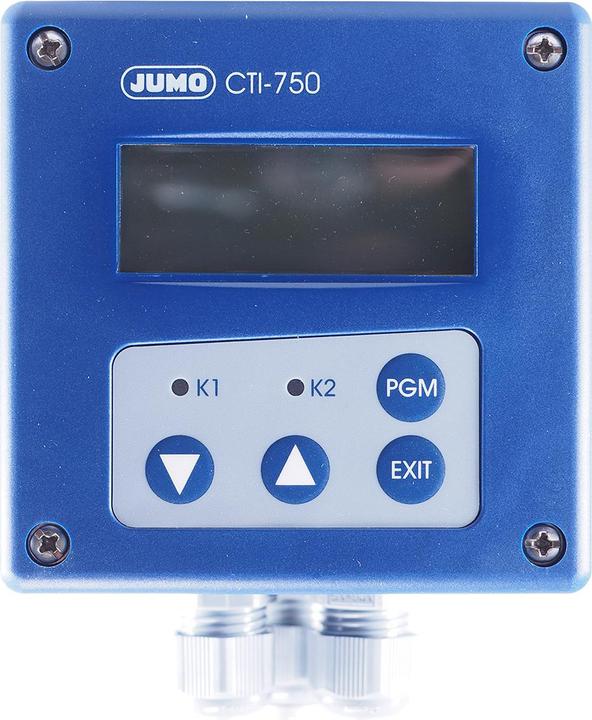

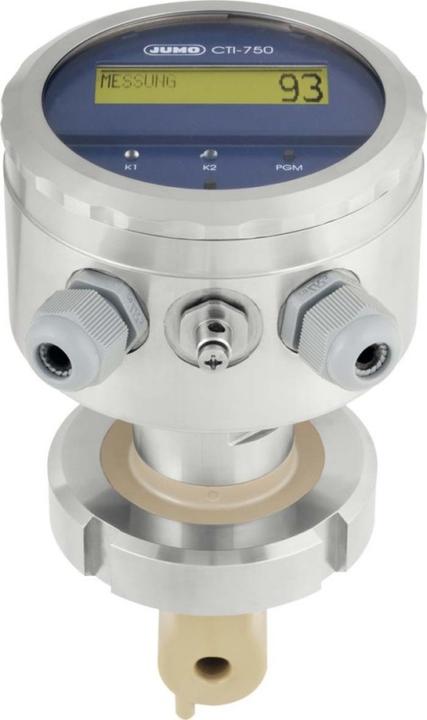

Jumo Transmitter 202756/15 #00544540

Manufacturer: Jumo
Designation: Transmitter 607-0000-82/767,941
Type: 202756/15 #00544540
Design: inductive
Insertion length: 76 mm
Max. pressure: 10 bar
Max. temperature: 140 °C
Sensor type: Pt1000
Cell constant: other
Electrode material: PEEK
Process connection design: other
Process connection material: PEEK
Electrical connection design: other
Angle connector: no
Cable length: 0 m

Jumo Transmitter 202756/15 #00544540: additional details

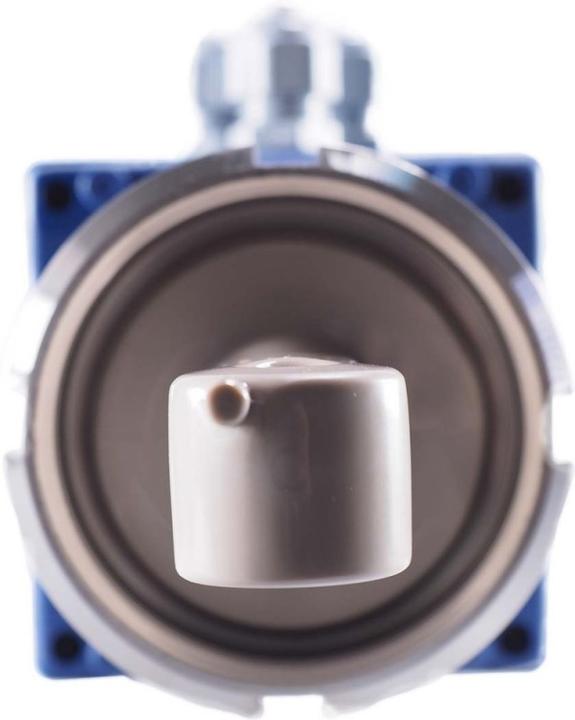

This inductive conductivity, concentration, and temperature transmitter with switching contacts and a permanently mounted sensor features two freely programmable analog outputs for conductivity and temperature, as well as two potential-free contacts. Up to four measurement ranges and temperature coefficients can be activated. Temperature compensation can be linear, for natural waters, or as a custom characteristic curve (learning function). Additionally, the device includes a desalting control. It can be operated via display and keyboard as well as through setup software. The process connection consists of a hygienic sensor made of PEEK with a DN50 pipe fitting, DIN 11851 (MK DN50, milk cone). The power supply is provided via a power supply unit with DC 19...31 V.
EAN: 4053877005469.
