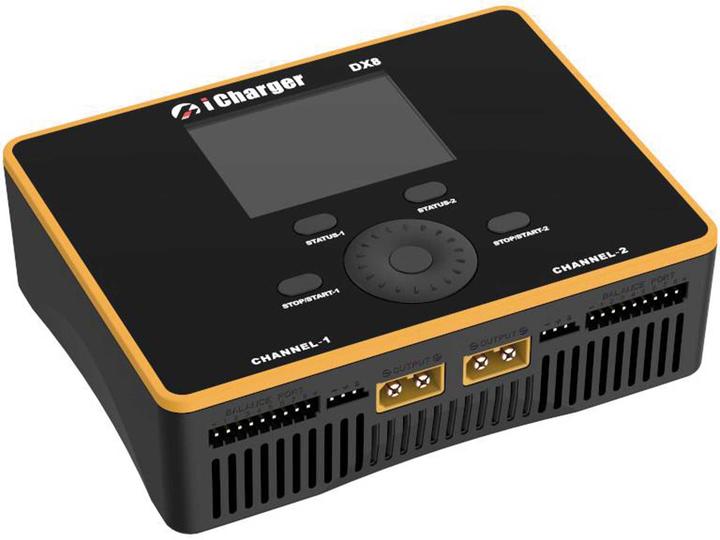

Super compact 1600W charger with integrated balancer, USB port, and card slot for micro SD cards for logs. This microprocessor-controlled high-performance fast charger/discharger and balancer supports various battery types: LiPo, LiLo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb, and new User.

Number of cells supported:

• 1-8 for LiPo, LiLo, LiFe, LiVH, LTO, NiZn, and User
• 1-25 for NiMH/NiCd
• 1-15 for Pb (2-30 V)

Input voltage: DC 9-49 V
Input current: < 65A, with both channels limited to 45A each.

Charge power max (asynchronous): 1600W (each output can handle a maximum of 1100W), for example, 2 x 800W from >25V or 2 x 500W from >16V with an input current of 65A.

Charging power with input voltage 12V/45A/65A: 500W with only one output, 750W when using both outputs.
Charging current:

• 2 x 0.05 - 30A (asynchronous)
• 0.05 - 50A (synchronous)

Discharging power max: 70W, with 2 x 45W (one output alone can produce a maximum of 45W, but both outputs together can produce 70W).
Discharging current:

• 2 x 0.05 - 30A (asynchronous)
• 0.05 - 50A (synchronous)

Regenerative discharge: up to a total of 1600W (each output can max. 1100W).
Discharge with external load max: 2100W 35V/30A (each output can max. 1050W).
Balancer current: 2A per output and cell or 4A in synchronous mode.
Balance accuracy: <10mV.

Automatic fan control for the two fans.
USB type C port: 5V/3A, 9V/2A, 12V/1.5A.
Micro SD slot for saving logs and data.
Dimensions: 97.5 x 128.5 x 40 mm.
Weight: 0.44 kg.

Asynchronous means one battery pack per output. Synchronous means two identical battery packs connected in parallel, with both outputs combined. Regenerative discharge refers to current regeneration in a lead-acid battery.

Further functions include internal resistance measurement of the cells, servo test, and firmware update via USB connection.
