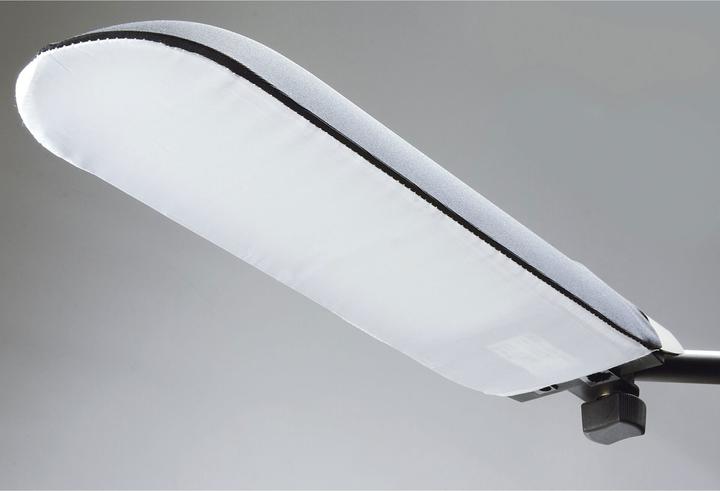

Kaiser Copylizer illumination unit RB 5270 DXLED is an incident light illumination unit designed for the Copylizer (5215) and illuminated base plate (5244). It features executive LED technology with two area lights that provide even and soft illumination. Each light consists of 161 specially selected white SMD LEDs, emitting light that is completely free of infrared and UV components. The unit operates on DC power, ensuring flicker-free performance without residual ripple. The luminaires can be adjusted individually or synchronously and are infinitely dimmable. A removable fabric diffuser (5466) is included, and the luminaires can be rotated, swivelled, and adjusted in height. Vertical support arms with height markings swivel in snap-in joints and attach to the Copylizer/light base plate via a joint base. The unit includes a power supply.

Technical details:

• LED array: 2 x 161 SMD LEDs
• Colour temperature: approx. 6000 Kelvin
• Colour rendering index: CRI > 93
• Beam angle: 110°
• Illuminance without diffuser: 3000 lux / with diffuser: 2400 lux (measured at the highest possible homogeneity of illumination of a DIN A3 template)
• Power consumption: 2 x 27 W
• Operating voltage: 12 V
• Light emission area of one lamp: 33 x 8.5 cm

The RB 5270 DX lighting unit can also be attached to the base frame of the "TopTable PRO" (5921) shooting table as incident light illumination. This product is intended for the illumination of picture taking and is not suitable for household lighting.
